高中时候的古董,现在重读,有点累。体会:文档很重要。。。
当初WinXP下开发,现在在Win7下有点变形。

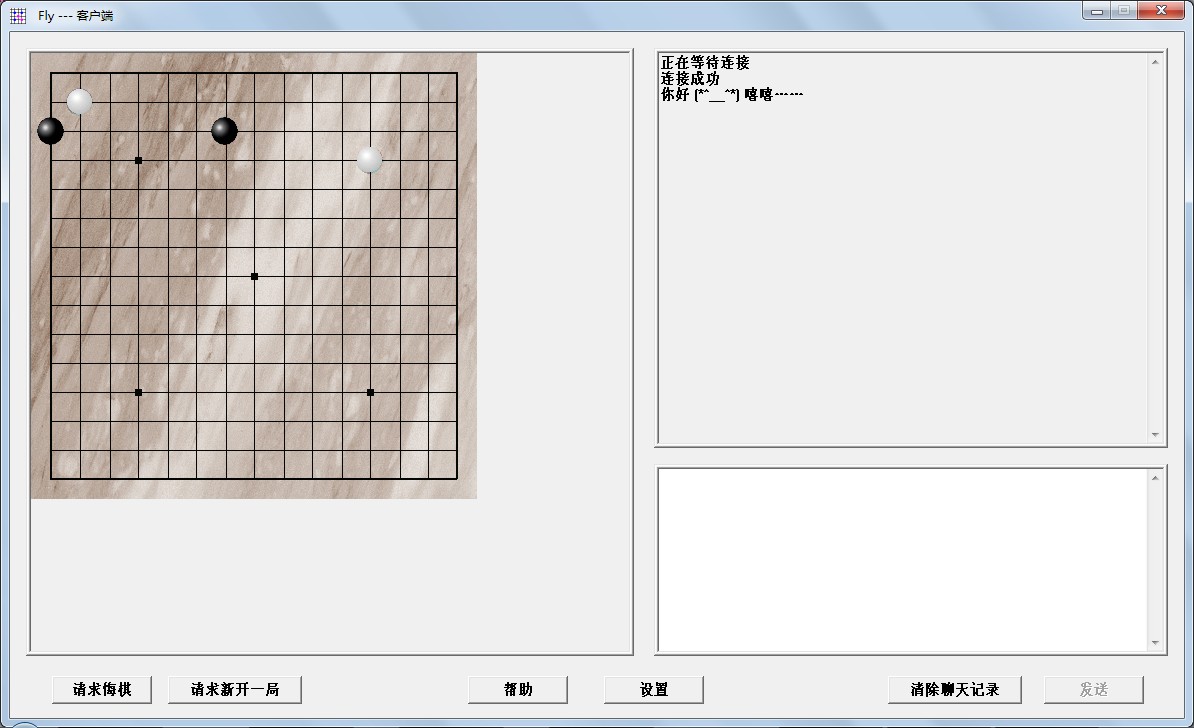

客户端

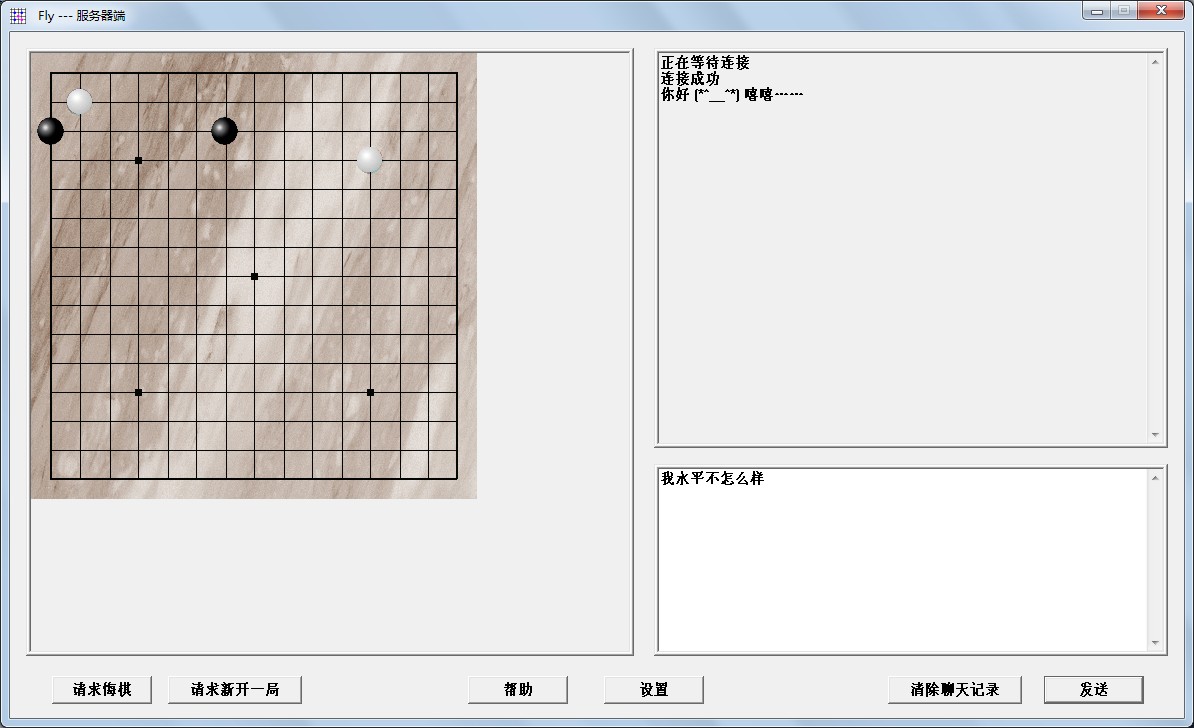

服务器端

ReadMe.txt(也许可以称之为文档)
1
功能:
2
网络对战五子棋与网络聊天。
3
4
5
开发工具:
6
VS2008 中的 C++, 即VC9.0。
7
8
9
平台:
10
Windows,需VC9.0运行时支持(相关VC *.dll 已放在Release目录下,不需另外安装)。
11
12
13
技术:
14
WinSock;
15
Win32 Api;
16
对话框(用Win32 Api 函数处理);
17
多线程(用事件内核对象实现共享资源互斥访问);
18
用C++类模块化封装,易于维护;
19
使用预编译指令,一份代码可编译为服务器端或客户端(由DetermineServerClient.h中的宏SERVER_DEFINED是否定义决定)。
20
21
22
注意:
23
ServerIP.inf 中放服务器ip地址,服务器先启动。
24
Fly_命名.exe 为辅助程序,放在Release或Debug目录下,根据预编译指令将Fly.exe改名为Fly Server.exe 或 Fly Client.exe。
25
26
27
不足:
28
最近落子无标记。
29
无判断输赢模块。
30
光标未使用。
31
设置功能未加。
32
聊天记录框中对方与自己用相同的字体及颜色。
33
34
35
36
开发用时近两个星期,其中一个星期多用于边学边写对话框部分。
37
resource.h
1
//{{NO_DEPENDENCIES}}
2
// Microsoft Visual C++ generated include file.
3
// Used by Fly.rc
4
//
5
#define IDD_DIALOG_MAIN 101
6
#define IDB_CHESSBOARD 102
7
#define IDB_CHESSMAN_BLACK 103
8
#define IDB_CHESSMAN_WHITE 104
9
#define IDB_CHESSMAN_MASK 105
10
#define IDI_ICON 106
11
#define IDC_HAND_BLACK 107
12
#define IDC_HAND_WHITE 108
13
#define IDC_EDIT_CHAT_INPUT 1001
14
#define IDC_EDIT_CHAT_BOARD 1002
15
#define IDC_STATIC_CHESSBOARD 1003
16
#define IDC_BUTTON_SEND 1004
17
#define IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN 1005
18
#define IDC_BUTTON_ASK_FOR_NEW_GAME 1006
19
#define IDC_BUTTON_CLEAR_CHAT_RECORD 1007
20
#define IDC_BUTTON_HELP 1008
21
#define IDC_BUTTON_SET 1009
22
23
// Next default values for new objects
24
//
25
#ifdef APSTUDIO_INVOKED
26
#ifndef APSTUDIO_READONLY_SYMBOLS
27
#define _APS_NEXT_RESOURCE_VALUE 109
28
#define _APS_NEXT_COMMAND_VALUE 40001
29
#define _APS_NEXT_CONTROL_VALUE 1010
30
#define _APS_NEXT_SYMED_VALUE 101
31
#endif
32
#endif
33
GetServerIP.h
1
#ifndef GETSERVERIP_H_INCLUDED
2
#define GETSERVERIP_H_INCLUDED
3
4
5
#include "winsock2.h"
6
#include "fstream"
7
using namespace std;
8
9
10
IN_ADDR GetServerIP( VOID );
11
12
13
#endif
14
GetServerIP.cpp
1
#include "GetServerIP.h"
2
3
4
IN_ADDR GetServerIP( VOID )
{
5
IN_ADDR inaddr;
6
::memset( &inaddr, 0, sizeof(inaddr) );
7
8
ifstream fin;
9
const int LEN = 20;
10
char szIp[LEN]=
{0};
11
int i, dots=0;
12
BOOL bOk = 1;
13
14
fin.open( "ServerIP.inf" );
15
if( fin.fail() )
{
16
return inaddr;
17
}
18
fin.getline( szIp, LEN-1 );
19
fin.close();
20
21
for( i=0; szIp[i]; ++i )
{
22
if( i > 14 )
{
23
bOk = 0; break;
24
}
25
if( szIp[i] == '.' )
{
26
if( (++dots>3) || (szIp[i+1]=='.') )
{
27
bOk = 0; break;
28
}
29
}
30
else
{
31
if( (szIp[i]<'0') || ('9'<szIp[i]) )
{
32
bOk = 0; break;
33
}
34
}
35
}
36
if( bOk )
{
37
inaddr.S_un.S_addr = ::inet_addr( szIp );
38
}
39
return inaddr;
40
}
41
Fly.rc
1
// Microsoft Visual C++ generated resource script.
2
//
3
#include "resource.h"
4
5
#define APSTUDIO_READONLY_SYMBOLS
6
/**////////////////////////////////////////////////////////////////////////////// 7
//
8
// Generated from the TEXTINCLUDE 2 resource.
9
//
10
#include "afxres.h"
11
12
/**////////////////////////////////////////////////////////////////////////////// 13
#undef APSTUDIO_READONLY_SYMBOLS
14
15
/**////////////////////////////////////////////////////////////////////////////// 16
// Chinese (P.R.C.) resources
17
18
#if !defined(AFX_RESOURCE_DLL) || defined(AFX_TARG_CHS)
19
#ifdef _WIN32
20
LANGUAGE LANG_CHINESE, SUBLANG_CHINESE_SIMPLIFIED
21
#pragma code_page(936)
22
#endif //_WIN32
23
24
#ifdef APSTUDIO_INVOKED
25
/**////////////////////////////////////////////////////////////////////////////// 26
//
27
// TEXTINCLUDE
28
//
29
30
1 TEXTINCLUDE
31
BEGIN
32
"resource.h\0"
33
END
34
35
2 TEXTINCLUDE
36
BEGIN
37
"#include ""afxres.h""\r\n"
38
"\0"
39
END
40
41
3 TEXTINCLUDE
42
BEGIN
43
"\r\n"
44
"\0"
45
END
46
47
#endif // APSTUDIO_INVOKED
48
49
50
/**////////////////////////////////////////////////////////////////////////////// 51
//
52
// Dialog
53
//
54
55
IDD_DIALOG_MAIN DIALOGEX 0, 0, 587, 343
56
STYLE DS_SETFONT | DS_MODALFRAME | DS_SETFOREGROUND | DS_3DLOOK | DS_CENTER | WS_MINIMIZEBOX | WS_POPUP | WS_VISIBLE | WS_CAPTION | WS_SYSMENU
57
EXSTYLE WS_EX_CLIENTEDGE | WS_EX_STATICEDGE
58
FONT 9, "楷体_GB2312", 400, 0, 0x86
59
BEGIN
60
CONTROL "",IDC_STATIC_CHESSBOARD,"Static",SS_OWNERDRAW | SS_NOTIFY | SS_SUNKEN | WS_BORDER,8,8,304,304,WS_EX_DLGMODALFRAME | WS_EX_CLIENTEDGE | WS_EX_STATICEDGE
61
EDITTEXT IDC_EDIT_CHAT_BOARD,322,8,257,200,ES_MULTILINE | ES_AUTOVSCROLL | ES_READONLY | ES_WANTRETURN | WS_VSCROLL | NOT WS_TABSTOP,WS_EX_DLGMODALFRAME | WS_EX_CLIENTEDGE | WS_EX_STATICEDGE
62
EDITTEXT IDC_EDIT_CHAT_INPUT,322,216,257,96,ES_MULTILINE | ES_AUTOVSCROLL | ES_WANTRETURN | WS_VSCROLL | NOT WS_TABSTOP,WS_EX_DLGMODALFRAME | WS_EX_CLIENTEDGE | WS_EX_STATICEDGE
63
PUSHBUTTON "发送",IDC_BUTTON_SEND,517,322,50,14,BS_CENTER | BS_VCENTER | NOT WS_TABSTOP
64
PUSHBUTTON "请求悔棋",IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN,21,322,50,14,BS_CENTER | BS_VCENTER | NOT WS_TABSTOP
65
PUSHBUTTON "请求新开一局",IDC_BUTTON_ASK_FOR_NEW_GAME,79,322,67,14,BS_CENTER | BS_VCENTER | NOT WS_TABSTOP
66
PUSHBUTTON "清除聊天记录",IDC_BUTTON_CLEAR_CHAT_RECORD,439,322,67,14,BS_CENTER | BS_VCENTER | NOT WS_TABSTOP
67
PUSHBUTTON "帮助",IDC_BUTTON_HELP,229,322,50,14,BS_CENTER | BS_VCENTER | NOT WS_TABSTOP
68
PUSHBUTTON "设置",IDC_BUTTON_SET,297,322,50,14,BS_CENTER | BS_VCENTER | NOT WS_TABSTOP
69
END
70
71
72
/**////////////////////////////////////////////////////////////////////////////// 73
//
74
// DESIGNINFO
75
//
76
77
#ifdef APSTUDIO_INVOKED
78
GUIDELINES DESIGNINFO
79
BEGIN
80
IDD_DIALOG_MAIN, DIALOG
81
BEGIN
82
LEFTMARGIN, 8
83
RIGHTMARGIN, 579
84
TOPMARGIN, 8
85
BOTTOMMARGIN, 336
86
END
87
END
88
#endif // APSTUDIO_INVOKED
89
90
91
/**////////////////////////////////////////////////////////////////////////////// 92
//
93
// Bitmap
94
//
95
96
IDB_CHESSBOARD BITMAP "Resource\\Chessboard.bmp"
97
IDB_CHESSMAN_BLACK BITMAP "Resource\\ChessmanBlack.bmp"
98
IDB_CHESSMAN_WHITE BITMAP "Resource\\ChessmanWhite.bmp"
99
IDB_CHESSMAN_MASK BITMAP "Resource\\ChessmanMask.bmp"
100
101
/**//////////////////////////////////////////////////////////////////////////////102
//
103
// Icon
104
//
105
106
// Icon with lowest ID value placed first to ensure application icon
107
// remains consistent on all systems.
108
IDI_ICON ICON "Resource\\Icon.ico"
109
110
/**//////////////////////////////////////////////////////////////////////////////111
//
112
// Cursor
113
//
114
115
IDC_HAND_BLACK CURSOR "Resource\\HandBlack.cur"
116
IDC_HAND_WHITE CURSOR "Resource\\HandWhite.cur"
117
#endif // Chinese (P.R.C.) resources
118
/**//////////////////////////////////////////////////////////////////////////////119
120
121
122
#ifndef APSTUDIO_INVOKED
123
/**//////////////////////////////////////////////////////////////////////////////124
//
125
// Generated from the TEXTINCLUDE 3 resource.
126
//
127
128
129
/**//////////////////////////////////////////////////////////////////////////////130
#endif // not APSTUDIO_INVOKED
131
132
Fly.cpp
1
#include "resource.h"
2
#include "winsock2.h"
3
#include "windowsx.h"
4
#include "process.h"
5
6
#include "DetermineServerClient.h"
7
#include "ChessCommon.h"
8
#include "CMutexString.h"
9
#include "CChessPainter.h"
10
#include "CClientServer.h"
11
12
13
#pragma comment( lib, "ws2_32.lib" )
14
15
16
#ifdef SERVER_DEFINED
17
#define CHESS_TYPE_PLAYER CHESS_TYPE_WHITE
18
#define CHESS_TYPE_ENEMY CHESS_TYPE_BLACK
19
#define MAIN_NAME TEXT(" Fly --- 服务器端")
20
#else
21
#define CHESS_TYPE_PLAYER CHESS_TYPE_BLACK
22
#define CHESS_TYPE_ENEMY CHESS_TYPE_WHITE
23
#define MAIN_NAME TEXT(" Fly --- 客户端")
24
#endif
25
26
//--------------------------------------------------------------------------------------------------------
27
HWND hDialog = 0;
28
CMutexString ms;
29
CClientServer cs;
30
31
//--------------------------------------------------------------------------------------------------------
32
UINT __stdcall DealCmdReceived( LPVOID )
{
33
::PostMessage( hDialog, WM_NET_STATE, WPARAM_INIT_ING, 0 );
34
if( ! cs.Initialize() )
{
35
::PostMessage( hDialog, WM_NET_STATE, WPARAM_INIT_FAILED, 0 );
36
return 0;
37
}
38
::PostMessage( hDialog, WM_NET_STATE, WPARAM_INIT_SUCCEEDED, 0 );
39
40
DWORD dwCmdType, dwPos;
41
char CmdParam[CMD_PARAM_LEN+2];
42
int cbParam;
43
while( cs.ReceiveCmd( dwCmdType, CmdParam, cbParam ) )
{
44
switch( dwCmdType )
{
45
case CMD_PUT_CHESSMAN :
46
::CWsData::CharToDwordHL( CmdParam, dwPos );
47
::PostMessage( hDialog, WM_CHESSMAN, WPARAM_PUT_ENEMY_CHESSMAN, dwPos );
48
break;
49
case CMD_CHAT_WORDS_CONTINUE :
50
CmdParam[cbParam+1] = CmdParam[cbParam] = 0;
51
ms.AppendString( LPCTSTR(CmdParam), 0 );
52
::PostMessage( hDialog, WM_CHAT_WORDS, WPARAM_CHAT_WORDS_RECV_CONTINUE, 0 );
53
break;
54
case CMD_CHAT_WORDS :
55
CmdParam[cbParam+1] = CmdParam[cbParam] = 0;
56
ms.AppendString( LPCTSTR(CmdParam) );
57
::PostMessage( hDialog, WM_CHAT_WORDS, WPARAM_CHAT_WORDS_RECV, 0 );
58
break;
59
case CMD_ASK_FOR_REPUT_CHESSMAN :
60
::PostMessage( hDialog, WM_CHESSMAN, WPARAM_ENEMY_ASK_FOR_REPUT_CHESSMAN, 0 );
61
break;
62
case CMD_AGREE_REPUT_CHESSMAN :
63
::PostMessage( hDialog, WM_CHESSMAN, WPARAM_ENEMY_AGREE_REPUT_CHESSMAN, 0 );
64
break;
65
case CMD_DISAGREE_REPUT_CHESSMAN :
66
::PostMessage( hDialog, WM_CHESSMAN, WPARAM_ENEMY_DISAGREE_REPUT_CHESSMAN, 0 );
67
break;
68
case CMD_ASK_FOR_NEW_GAME :
69
::PostMessage( hDialog, WM_GAME, WPARAM_ENEMY_ASK_FOR_NEW_GAME, 0 );
70
break;
71
case CMD_AGREE_NEW_GAME :
72
::PostMessage( hDialog, WM_GAME, WPARAM_ENEMY_AGREE_NEW_GAME, 0 );
73
break;
74
case CMD_DISAGREE_NEW_GAME :
75
::PostMessage( hDialog, WM_GAME, WPARAM_ENEMY_DISAGREE_NEW_GAME, 0 );
76
break;
77
case CMD_BYE :
78
::PostMessage( hDialog, WM_BYE, WPARAM_BYE_RECV, 0 );
79
return 0;
80
}
81
}
82
::PostMessage( hDialog, WM_NET_STATE, WPARAM_ERROR, 0 );
83
return 0;
84
}
85
86
//--------------------------------------------------------------------------------------------------------
87
INT_PTR CALLBACK DialogMainProc( HWND hDlg, UINT uMsg, WPARAM wParam, LPARAM lParam )
{
88
static const int MAX_LEN = 1024 * 31;
89
static TCHAR szText[MAX_LEN];
90
static UINT uLength;
91
static CChessPainter cp;
92
static TSTRING ts;
93
static int ix, iy, result;
94
static BOOL bCantPutChessman = 0, bShouldSendBye = 1;
95
static BOOL bCanReputChessman = 0, bCanNewGame = 0, bCanSend = 0, bCanClear = 0;
96
static HWND hwndChessboard = 0;
97
static DWORD dwPos;
98
static POINT pt;
99
static HFONT hFont = 0;
100
static HICON hIcon = 0;
101
102
switch( uMsg )
{
103
case WM_CHESSMAN :
104
switch( wParam )
{
105
case WPARAM_PUT_PLAYER_CHESSMAN :
106
if( bCantPutChessman )
{
107
return 1;
108
}
109
ix = GET_X_LPARAM(lParam);
110
iy = GET_Y_LPARAM(lParam);
111
if( cp.PutChessman( ix, iy, CHESS_TYPE_PLAYER ) )
{
112
bCantPutChessman = 1;
113
if( ! bCanReputChessman )
{
114
bCanReputChessman = 1;
115
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN ), 1 );
116
}
117
if( ! bCanNewGame )
{
118
bCanNewGame = 1;
119
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_NEW_GAME ), 1 );
120
}
121
if( cs.SendCmd_PutChessman( ix, iy ) )
{
122
cp.PaintChess( hwndChessboard );
123
}
124
else
{
125
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
126
}
127
}
128
return 1;
129
case WPARAM_PUT_ENEMY_CHESSMAN :
130
ix = GET_X_LPARAM(lParam);
131
iy = GET_Y_LPARAM(lParam);
132
if( cp.PutChessman( ix, iy, CHESS_TYPE_ENEMY ) )
{
133
bCantPutChessman = 0;
134
if( ! bCanReputChessman )
{
135
bCanReputChessman = 1;
136
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN ), 1 );
137
}
138
if( ! bCanNewGame )
{
139
bCanNewGame = 1;
140
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_NEW_GAME ), 1 );
141
}
142
cp.PaintChess( hwndChessboard );
143
}
144
return 1;
145
case WPARAM_PLAYER_ASK_FOR_REPUT_CHESSMAN :
146
if( ! cs.SendCmd_AskForReputChessman() )
{
147
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
148
}
149
return 1;
150
case WPARAM_ENEMY_ASK_FOR_REPUT_CHESSMAN :
151
result = ::MessageBox( hDlg, TEXT("同意我悔棋吗?"), TEXT("对方发出悔棋请求"), MB_YESNO | MB_ICONQUESTION );
152
if( result == IDYES )
{
153
if( cs.SendCmd_AgreeReputChessman() )
{
154
bCanReputChessman = 0;
155
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN ), 0 );
156
::SendMessage( hDlg, WM_CHESSMAN, WPARAM_ENEMY_AGREE_REPUT_CHESSMAN, 0 );
157
}
158
else
{
159
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
160
}
161
}
162
else
{
163
if( ! cs.SendCmd_DisgreeReputChessman() )
{
164
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
165
}
166
}
167
return 1;
168
case WPARAM_ENEMY_AGREE_REPUT_CHESSMAN :
169
if( cp.EraseLastChessman( 1 ) )
{
170
bCantPutChessman = ! bCantPutChessman;
171
if( (cp.GetTotChessmanPut()==0) && (bCanNewGame) )
{
172
bCanNewGame = 0;
173
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_NEW_GAME ), 0 );
174
}
175
cp.PaintChess( hwndChessboard );
176
}
177
return 1;
178
case WPARAM_ENEMY_DISAGREE_REPUT_CHESSMAN :
179
::MessageBox( hDlg, TEXT("对方不同意悔棋"), TEXT("提示"), MB_OK );
180
return 1;
181
}
182
return 1;
183
184
case WM_CHAT_WORDS :
185
switch( wParam )
{
186
case WPARAM_CHAT_WORDS_SEND :
187
uLength = ::GetDlgItemText( hDlg, IDC_EDIT_CHAT_INPUT, szText, MAX_LEN );
188
if( uLength <= 0 )
{
189
return 1;
190
}
191
if( ! cs.SendCmd_ChatWords( (char*)szText, uLength*sizeof(TCHAR) ) )
{
192
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
193
}
194
::SetDlgItemText( hDlg, IDC_EDIT_CHAT_INPUT, TEXT("") );
195
ms.AppendGetString( ts, szText );
196
::SetDlgItemText( hDlg, IDC_EDIT_CHAT_BOARD, ts.c_str() );
197
if( ! bCanClear )
{
198
bCanClear = 1;
199
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_CLEAR_CHAT_RECORD ), 1 );
200
}
201
return 1;
202
case WPARAM_CHAT_WORDS_RECV_CONTINUE :
203
return 1;
204
case WPARAM_CHAT_WORDS_RECV :
205
ms.GetString( ts );
206
if( ts.length() <= 0 )
{
207
return 1;
208
}
209
::SetDlgItemText( hDlg, IDC_EDIT_CHAT_BOARD, ts.c_str() );
210
if( ! bCanClear )
{
211
bCanClear = 1;
212
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_CLEAR_CHAT_RECORD ), 1 );
213
}
214
return 1;
215
}
216
return 1;
217
218
case WM_COMMAND :
219
switch ( LOWORD( wParam ) )
{
220
case IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN :
221
bCanReputChessman = 0;
222
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN ), 0 );
223
::SendMessage( hDlg, WM_CHESSMAN, WPARAM_PLAYER_ASK_FOR_REPUT_CHESSMAN, 0 );
224
return 1;
225
case IDC_BUTTON_ASK_FOR_NEW_GAME :
226
bCanNewGame = 0;
227
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_NEW_GAME ), 0 );
228
::SendMessage( hDlg, WM_GAME, WPARAM_PLAYER_ASK_FOR_NEW_GAME, 0 );
229
return 1;
230
case IDC_BUTTON_HELP :
231
::MessageBox( hDlg, TEXT("\
232
目前没有帮助信息\n\
233
\n\n\n\
234
********************\n\
235
**** 作者:赵杰 ****\n\
236
********************\n\
237
"), TEXT("帮助"), MB_OK );
238
return 1;
239
case IDC_BUTTON_SET :
240
::MessageBox( hDlg, TEXT("尚未增加此功能"), TEXT("设置"), MB_OK );
241
return 1;
242
case IDC_BUTTON_CLEAR_CHAT_RECORD :
243
ms.ClearString();
244
bCanClear = 0;
245
::EnableWindow( (HWND)lParam, 0 );
246
::SetDlgItemText( hDlg, IDC_EDIT_CHAT_BOARD, TEXT("") );
247
return 1;
248
case IDC_BUTTON_SEND :
249
bCanSend = 0;
250
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_SEND ), 0 );
251
::SendMessage( hDlg, WM_CHAT_WORDS, WPARAM_CHAT_WORDS_SEND, 0 );
252
return 1;
253
case IDC_STATIC_CHESSBOARD :
254
switch( HIWORD(wParam) )
{
255
case STN_CLICKED :
256
dwPos = ::GetMessagePos();
257
pt.x = GET_X_LPARAM( dwPos );
258
pt.y = GET_Y_LPARAM( dwPos );
259
::ScreenToClient( hwndChessboard, &pt );
260
cp.PosClientToBoard( pt.x, pt.y, ix, iy );
261
::SendMessage( hDlg, WM_CHESSMAN, WPARAM_PUT_PLAYER_CHESSMAN, MAKELPARAM(ix,iy) );
262
return 1;
263
}
264
return 0;
265
case IDC_EDIT_CHAT_INPUT :
266
switch( HIWORD(wParam) )
{
267
case EN_UPDATE :
268
result = ::GetWindowTextLength( ::GetDlgItem(hDlg,IDC_EDIT_CHAT_INPUT) );
269
if( result <= 0 )
{
270
if( bCanSend )
{
271
bCanSend = 0;
272
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_SEND ), 0 );
273
}
274
}
275
else
{
276
if( ! bCanSend )
{
277
bCanSend = 1;
278
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_SEND ), 1 );
279
}
280
}
281
return 1;
282
}
283
return 0;
284
}
285
return 0;
286
287
case WM_DRAWITEM :
288
cp.PaintChess( LPDRAWITEMSTRUCT(lParam)->hDC );
289
return 1;
290
291
case WM_NET_STATE :
292
switch( wParam )
{
293
case WPARAM_INIT_ING :
294
ms.AppendString( TEXT("正在等待连接") );
295
::SendMessage( hDlg, WM_CHAT_WORDS, WPARAM_CHAT_WORDS_RECV, 0 );
296
return 1;
297
case WPARAM_INIT_FAILED :
298
bShouldSendBye = 0;
299
::MessageBox( hDlg, TEXT("连接失败"), TEXT("提示"), MB_OK );
300
::PostMessage( hDlg, WM_CLOSE, 0, 0 );
301
return 1;
302
case WPARAM_INIT_SUCCEEDED :
303
ms.AppendString( TEXT("连接成功") );
304
::SendMessage( hDlg, WM_CHAT_WORDS, WPARAM_CHAT_WORDS_RECV, 0 );
305
return 1;
306
case WPARAM_ERROR :
307
bShouldSendBye = 0;
308
::MessageBox( hDlg, TEXT("未连接"), TEXT("提示"), MB_OK );
309
::PostMessage( hDlg, WM_CLOSE, 0, 0 );
310
return 1;
311
}
312
return 1;
313
314
case WM_GAME :
315
switch( wParam )
{
316
case WPARAM_PLAYER_ASK_FOR_NEW_GAME :
317
if( ! cs.SendCmd_AskForNewGame() )
{
318
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
319
}
320
return 1;
321
case WPARAM_ENEMY_ASK_FOR_NEW_GAME :
322
result = ::MessageBox( hDlg, TEXT("同意新开一局吗?"), TEXT("对方发出新开一局请求"), MB_YESNO | MB_ICONQUESTION );
323
if( result == IDYES )
{
324
if( cs.SendCmd_AgreeNewGame() )
{
325
bCanNewGame = 0;
326
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_NEW_GAME ), 0 );
327
::SendMessage( hDlg, WM_GAME, WPARAM_ENEMY_AGREE_NEW_GAME, 0 );
328
}
329
else
{
330
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
331
}
332
}
333
else
{
334
if( ! cs.SendCmd_DisgreeNewGame() )
{
335
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
336
}
337
}
338
return 1;
339
case WPARAM_ENEMY_AGREE_NEW_GAME :
340
bCantPutChessman = 0;
341
cp.ClearChessboard();
342
cp.PaintChess( hwndChessboard );
343
if( bCanReputChessman )
{
344
bCanReputChessman = 0;
345
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN ), 0 );
346
}
347
return 1;
348
case WPARAM_ENEMY_DISAGREE_NEW_GAME :
349
::MessageBox( hDlg, TEXT("对方不同意新开一局"), TEXT("提示"), MB_OK );
350
return 1;
351
}
352
return 1;
353
354
case WM_BYE :
355
switch( wParam )
{
356
case WPARAM_BYE_SEND :
357
if( ! cs.SendCmd_Bye() )
{
358
::SendMessage( hDlg, WM_NET_STATE, WPARAM_ERROR, 0 );
359
}
360
bShouldSendBye = 0;
361
::PostMessage( hDlg, WM_CLOSE, 0, 0 );
362
return 1;
363
case WPARAM_BYE_RECV :
364
bShouldSendBye = 0;
365
::MessageBox( hDlg, TEXT("对方断开连接"), TEXT("提示"), MB_OK );
366
::PostMessage( hDlg, WM_CLOSE, 0, 0 );
367
return 1;
368
}
369
return 1;
370
371
case WM_INITDIALOG :
372
::CloseHandle( (HANDLE)::_beginthreadex( 0, 0, ::DealCmdReceived, 0, 0, 0 ) );
373
hDialog = hDlg;
374
hwndChessboard = ::GetDlgItem( hDlg, IDC_STATIC_CHESSBOARD );
375
::SetWindowText( hDlg, MAIN_NAME );
376
{
377
HWND hWnd;
378
::LOGFONT lf;
379
hWnd = ::GetDlgItem( hDlg, IDC_EDIT_CHAT_INPUT );
380
::GetObject( GetWindowFont(hWnd), sizeof(lf), &lf );
381
lf.lfHeight = lf.lfHeight * 9 / 5;
382
lf.lfWeight = lf.lfWeight * 9 / 5;
383
hFont = ::CreateFontIndirect( &lf );
384
SetWindowFont( hWnd, hFont, 0 );
385
SetWindowFont( ::GetDlgItem( hDlg, IDC_EDIT_CHAT_BOARD ), hFont, 0 );
386
}
387
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_REPUT_CHESSMAN ), 0 );
388
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_ASK_FOR_NEW_GAME ), 0 );
389
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_SEND ), 0 );
390
::EnableWindow( ::GetDlgItem( hDlg, IDC_BUTTON_CLEAR_CHAT_RECORD ), 0 );
391
hIcon = ::LoadIcon( ::GetModuleHandle(0), MAKEINTRESOURCE( IDI_ICON ) );
392
::SendMessage( hDlg, WM_SETICON, ICON_BIG, (LPARAM)hIcon );
393
::SendMessage( hDlg, WM_SETICON, ICON_SMALL, (LPARAM)hIcon );
394
return 1;
395
396
case WM_CLOSE :
397
if( bShouldSendBye )
{
398
::SendMessage( hDlg, WM_BYE, WPARAM_BYE_SEND, 0 );
399
}
400
if( hFont )
{
401
::DeleteFont( hFont );
402
hFont = 0;
403
}
404
if( hIcon )
{
405
::DeleteObject( hIcon );
406
hIcon = 0;
407
}
408
::EndDialog( hDlg, 0 );
409
return 0;
410
}
411
return 0;
412
}
413
414
//--------------------------------------------------------------------------------------------------------
415
int WINAPI WinMain( HINSTANCE hInst, HINSTANCE, LPSTR, int )
{
416
::DialogBoxParam( hInst, MAKEINTRESOURCE(IDD_DIALOG_MAIN), ::GetDesktopWindow(), ::DialogMainProc, 0 );
417
return 0;
418
}
419
DetermineServerClient.h
1
#ifndef DETERMINESERVERCLIENT_H_INCLUDED
2
#define DETERMINESERVERCLIENT_H_INCLUDED
3
4
5
//****************************************************************************
6
//****** 若 SERVER_DEFINED 宏定义,则编译为服务器端,否则编译为客户端 ********
7
8
//#define SERVER_DEFINED
9
10
//****************************************************************************
11
12
13
#endif
14
CWsServer.h
1
#ifndef CWSSERVER_H_INCLUDED
2
#define CWSSERVER_H_INCLUDED
3
4
5
#include "winsock2.h"
6
7
8
class CWsServer
9

{
10
public :
11
CWsServer( USHORT portServer );
12
~CWsServer();
13
14
BOOL ConnectClientServer( SOCKET &socketClient, SOCKADDR_IN *pAddrClient=0 );
15
16
private :
17
SOCKET socketServer;
18
BOOL bInitSucceeded;
19
};
20
21
22
#endif
23
CWsServer.cpp
1
#include "CWsServer.h"
2
3
4
CWsServer::CWsServer( USHORT portServer ):socketServer(INVALID_SOCKET),bInitSucceeded(0)
{
5
WSADATA wsaData;
6
SOCKADDR_IN addrServer;
7
if( ::WSAStartup( MAKEWORD( 2, 2 ), &wsaData ) )
{
8
return;
9
}
10
11
socketServer = ::socket( AF_INET, SOCK_STREAM, IPPROTO_TCP );
12
if( socketServer == INVALID_SOCKET )
{
13
::WSACleanup();
14
return;
15
}
16
17
::memset( &addrServer, 0, sizeof(addrServer) );
18
addrServer.sin_family = AF_INET;
19
addrServer.sin_port = portServer;
20
addrServer.sin_addr.S_un.S_addr = INADDR_ANY;
21
if( ::bind( socketServer, (sockaddr*)&addrServer, sizeof(addrServer) ) )
{
22
::closesocket( socketServer );
23
socketServer = INVALID_SOCKET;
24
::WSACleanup();
25
return;
26
}
27
28
if( ::listen( socketServer, 1 ) )
{
29
::closesocket( socketServer );
30
socketServer = INVALID_SOCKET;
31
::WSACleanup();
32
return;
33
}
34
35
bInitSucceeded = 1;
36
}
37
38
CWsServer::~CWsServer()
{
39
if( bInitSucceeded )
{
40
::closesocket( socketServer );
41
socketServer = INVALID_SOCKET;
42
::WSACleanup();
43
}
44
}
45
46
47
BOOL CWsServer::ConnectClientServer( SOCKET &socketClient, SOCKADDR_IN *pAddrClient )
{
48
if( ! bInitSucceeded )
{
49
return 0;
50
}
51
/**//*if( socketClient != INVALID_SOCKET ){
52
return 0;
53
}*/
54
SOCKADDR_IN addrClient;
55
int addrLen = sizeof(addrClient);
56
socketClient = ::accept( socketServer, (sockaddr*)&addrClient, &addrLen );
57
if( socketClient == INVALID_SOCKET )
{
58
return 0;
59
}
60
if( pAddrClient )
{
61
*pAddrClient = addrClient;
62
}
63
return 1;
64
}
65
CWsData.h
1
#ifndef CWSDATA_H_INCLUDED
2
#define CWSDATA_H_INCLUDED
3
4
5
#include "winsock2.h"
6
7
8
class CWsData
9

{
10
public :
11
CWsData();
12
CWsData( SOCKET sok );
13
~CWsData();
14
15
BOOL SetSocket( BOOL bCloseBeforeSet, SOCKET sok );
16
BOOL SetSocket( SOCKET sok, BOOL bFailIfSetAlready=1 );
17
BOOL IsSetAlready( VOID );
18
19
BOOL ReceiveData( char *pBuf, int cbToRecv );
20
BOOL SendData( const char *pBuf, int cbToSend );
21
BOOL ReceiveDword( DWORD &dw );
22
BOOL SendDword( DWORD dw );
23
24
static BOOL CharToDwordHL( const char *pBuf, DWORD &dw );
25
static BOOL CharToDwordHL( char d3, char d2, char d1, char d0, DWORD &dw );
26
static BOOL DwordToCharHL( DWORD dw, char *pBuf );
27
static BOOL DwordToCharHL( DWORD dw, char &d3, char &d2, char &d1, char &d0 );
28
29
private :
30
SOCKET ts;
31
};
32
33
34
#endif
35
CWsData.cpp
1
#include "CWsData.h"
2
3
4
CWsData::CWsData():ts(INVALID_SOCKET)
{
5
}
6
7
CWsData::CWsData( SOCKET sok ):ts(sok)
{
8
}
9
10
CWsData::~CWsData()
{
11
if( ts != INVALID_SOCKET )
{
12
::closesocket( ts );
13
ts = INVALID_SOCKET;
14
}
15
}
16
17
18
BOOL CWsData::SetSocket( BOOL bCloseBeforeSet, SOCKET sok )
{
19
if( bCloseBeforeSet )
{
20
if( ts != INVALID_SOCKET )
{
21
::closesocket( ts );
22
}
23
}
24
ts = sok;
25
return 1;
26
}
27
28
BOOL CWsData::SetSocket( SOCKET sok, BOOL bFailIfSetAlready )
{
29
if( bFailIfSetAlready )
{
30
if( ts != INVALID_SOCKET )
{
31
return 0;
32
}
33
}
34
ts = sok;
35
return 1;
36
}
37
38
BOOL CWsData::IsSetAlready( VOID )
{
39
if( ts != INVALID_SOCKET )
{
40
return 1;
41
}
42
return 0;
43
}
44
45
46
BOOL CWsData::ReceiveData( char *pBuf, int cbToRecv )
{
47
int iTotRecv=0, iRecv;
48
while( iTotRecv < cbToRecv )
{
49
iRecv = ::recv( ts, pBuf+iTotRecv, cbToRecv-iTotRecv, 0 );
50
if( iRecv <= 0 )
{
51
return 0;
52
}
53
iTotRecv += iRecv;
54
}
55
return 1;
56
}
57
58
BOOL CWsData::SendData( const char *pBuf, int cbToSend )
{
59
int iTotSend=0, iSend;
60
while( iTotSend < cbToSend )
{
61
iSend = ::send( ts, pBuf+iTotSend, cbToSend-iTotSend, 0 );
62
if( iSend <= 0 )
{
63
return 0;
64
}
65
iTotSend += iSend;
66
}
67
return 1;
68
}
69
70
BOOL CWsData::ReceiveDword( DWORD &dw )
{
71
char ch[4];
72
if( ! ReceiveData( ch, 4 ) ) return 0;
73
if( ! CharToDwordHL( ch, dw ) ) return 0;
74
return 1;
75
}
76
77
BOOL CWsData::SendDword( DWORD dw )
{
78
char ch[4];
79
if( ! DwordToCharHL( dw, ch ) ) return 0;
80
if( ! SendData( ch, 4 ) ) return 0;
81
return 1;
82
}
83
84
85
BOOL CWsData::CharToDwordHL( const char *pBuf, DWORD &dw )
{
86
return CharToDwordHL( pBuf[0], pBuf[1], pBuf[2], pBuf[3], dw );
87
}
88
89
BOOL CWsData::CharToDwordHL( char d3, char d2, char d1, char d0, DWORD &dw )
{
90
dw = (DWORD(d3&0xffff)<<24) | (DWORD(d2&0xffff)<<16) | (DWORD(d1&0xffff)<<8) | DWORD(d0&0xffff);
91
return 1;
92
}
93
94
BOOL CWsData::DwordToCharHL( DWORD dw, char *pBuf )
{
95
return DwordToCharHL( dw, pBuf[0], pBuf[1], pBuf[2], pBuf[3] );
96
}
97
98
BOOL CWsData::DwordToCharHL( DWORD dw, char &d3, char &d2, char &d1, char &d0 )
{
99
d3 = char((dw>>24)&0xffff);
100
d2 = char((dw>>16)&0xffff);
101
d1 = char((dw>> 8)&0xffff);
102
d0 = char( dw &0xffff);
103
return 1;
104
}
105
CWsClient.h
1
#ifndef CWSCLIENT_H_INCLUDED
2
#define CWSCLIENT_H_INCLUDED
3
4
5
#include "winsock2.h"
6
7
8
class CWsClient
9

{
10
public :
11
CWsClient( USHORT portServer, IN_ADDR inaddrServer );
12
~CWsClient();
13
14
BOOL ConnectClientServer( SOCKET &socketServer, SOCKADDR_IN *pAddrServer=0 );
15
16
private :
17
SOCKADDR_IN addrServer;
18
BOOL bInitSucceeded;
19
};
20
21
22
#endif
23
CWsClient.cpp
1
#include "CWsClient.h"
2
3
4
CWsClient::CWsClient( USHORT portServer, IN_ADDR inaddrServer ):bInitSucceeded(0)
{
5
WSADATA wsaData;
6
if( ::WSAStartup( MAKEWORD( 2, 2 ), &wsaData ) )
{
7
return;
8
}
9
::memset( &addrServer, 0, sizeof(addrServer) );
10
addrServer.sin_family = AF_INET;
11
addrServer.sin_port = portServer;
12
addrServer.sin_addr = inaddrServer;
13
14
bInitSucceeded = 1;
15
}
16
17
CWsClient::~CWsClient()
{
18
if( bInitSucceeded )
{
19
::WSACleanup();
20
}
21
}
22
23
24
BOOL CWsClient::ConnectClientServer( SOCKET &socketServer, SOCKADDR_IN *pAddrServer )
{
25
if( ! bInitSucceeded )
{
26
return 0;
27
}
28
/**//*if( socketServer != INVALID_SOCKET ){
29
return 0;
30
}*/
31
socketServer = ::socket( AF_INET, SOCK_STREAM, IPPROTO_TCP );
32
if( socketServer == INVALID_SOCKET )
{
33
return 0;
34
}
35
36
if( pAddrServer )
{
37
*pAddrServer = addrServer;
38
}
39
if( ::connect( socketServer, (sockaddr*)&addrServer, sizeof(addrServer) ) )
{
40
return 0;
41
}
42
return 1;
43
}
44
CMutexString.h
1
#ifndef CMUTEXSTRING_H_INCLUDED
2
#define CMUTEXSTRING_H_INCLUDED
3
4
5
#include "string"
6
using namespace std;
7
#ifdef UNICODE
8
#define TSTRING wstring
9
#else
10
#define TSTRING string
11
#endif
12
13
14
#include "winsock2.h"
15
16
17
class CMutexString
18

{
19
public :
20
CMutexString( UINT maxLength=MAX_LENGTH );
21
~CMutexString();
22
23
VOID GetString( TSTRING &str );
24
VOID ClearString( VOID );
25
VOID GetClearString( TSTRING &str );
26
VOID AppendString( LPCTSTR str, BOOL bEndAppendNewLine=1 );
27
VOID AppendGetString( TSTRING &tstr, LPCTSTR c_str, BOOL bEndAppendNewLine=1 );
28
VOID AppendGetClearString( TSTRING &tstr, LPCTSTR c_str, BOOL bEndAppendNewLine=1 );
29
30
private :
31
TSTRING ts;
32
HANDLE hEvent;
33
UINT uMaxLength;
34
35
static CONST UINT MAX_LENGTH;
36
static LPCTSTR NEW_LINE;
37
};
38
39
40
#endif
41
CMutexString.cpp
1
#include "CMutexString.h"
2
3
4
CONST UINT CMutexString::MAX_LENGTH = 1024 * 30 - 2;
5
LPCTSTR CMutexString::NEW_LINE = TEXT("\r\n");
6
7
//---------------------------------------------------------------------------------------------------------
8
CMutexString::CMutexString( UINT maxLength ):ts(TEXT("")),hEvent(0),uMaxLength(maxLength)
{
9
if( uMaxLength > MAX_LENGTH )
{
10
uMaxLength = MAX_LENGTH;
11
}
12
hEvent = ::CreateEvent( 0, 0, 1, 0 );
13
}
14
15
CMutexString::~CMutexString()
{
16
::CloseHandle( hEvent );
17
}
18
19
//----------------------------------------------------------------------------------------------------------
20
VOID CMutexString::GetString( TSTRING &str )
{
21
::WaitForSingleObject( hEvent, INFINITE );
22
str = ts;
23
::SetEvent( hEvent );
24
return;
25
}
26
27
VOID CMutexString::ClearString( VOID )
{
28
::WaitForSingleObject( hEvent, INFINITE );
29
ts = TEXT("");
30
::SetEvent( hEvent );
31
return;
32
}
33
34
VOID CMutexString::GetClearString( TSTRING &str )
{
35
::WaitForSingleObject( hEvent, INFINITE );
36
str = ts;
37
ts = TEXT("");
38
::SetEvent( hEvent );
39
return;
40
}
41
42
VOID CMutexString::AppendString( LPCTSTR str, BOOL bEndAppendNewLine )
{
43
::WaitForSingleObject( hEvent, INFINITE );
44
ts += str;
45
if( bEndAppendNewLine )
{
46
ts += NEW_LINE;
47
}
48
UINT uL = ts.length();
49
if( uL > uMaxLength )
{
50
ts.erase( 0, uL - uMaxLength );
51
}
52
::SetEvent( hEvent );
53
return;
54
}
55
56
VOID CMutexString::AppendGetString( TSTRING &tstr, LPCTSTR c_str, BOOL bEndAppendNewLine )
{
57
::WaitForSingleObject( hEvent, INFINITE );
58
ts += c_str;
59
if( bEndAppendNewLine )
{
60
ts += NEW_LINE;
61
}
62
UINT uL = ts.length();
63
if( uL > uMaxLength )
{
64
ts.erase( 0, uL - uMaxLength );
65
}
66
tstr = ts;
67
::SetEvent( hEvent );
68
return;
69
}
70
71
VOID CMutexString::AppendGetClearString( TSTRING &tstr, LPCTSTR c_str, BOOL bEndAppendNewLine )
{
72
::WaitForSingleObject( hEvent, INFINITE );
73
ts += c_str;
74
if( bEndAppendNewLine )
{
75
ts += NEW_LINE;
76
}
77
UINT uL = ts.length();
78
if( uL > uMaxLength )
{
79
ts.erase( 0, uL - uMaxLength );
80
}
81
tstr = ts;
82
ts = TEXT("");
83
::SetEvent( hEvent );
84
return;
85
}
86
ChessCommon.h
1
/**//*
2
服务器端 白棋,客户端 黑棋。
3
4
网络信息:
5
前四字节依次为 DWORD 的高到低字节,表示此条信息的字节数(不含此四字节);
6
再四字节依次为 DWORD 的高到低字节,表示指令类型:落子,聊天,请求悔棋,请求新开一局,等等
7
之后为指令的参数,参数最大长度为 CMD_PARAM_LEN 字节
8
落子:坐标同 LPARAM ——棋盘(0..14),而非窗口。
9
*/
10
11
#ifndef CHESSCOMMON_H_INCLUDED
12
#define CHESSCOMMON_H_INCLUDED
13
14
15
// 网络
16
#define SERVER_PORT 35536
17
18
19
// 命令
20
#define CMD_PARAM_LEN 1024
21
#define CMD_BYE 0
22
#define CMD_PUT_CHESSMAN 1
23
#define CMD_CHAT_WORDS 2
24
#define CMD_CHAT_WORDS_CONTINUE 3
25
#define CMD_ASK_FOR_REPUT_CHESSMAN 4
26
#define CMD_AGREE_REPUT_CHESSMAN 5
27
#define CMD_DISAGREE_REPUT_CHESSMAN 6
28
#define CMD_ASK_FOR_NEW_GAME 7
29
#define CMD_AGREE_NEW_GAME 8
30
#define CMD_DISAGREE_NEW_GAME 9
31
32
33
// 消息
34
#define WM_NET_STATE (WM_USER+1)
35
#define WPARAM_INIT_ING 0
36
#define WPARAM_INIT_FAILED 1
37
#define WPARAM_INIT_SUCCEEDED 2
38
#define WPARAM_ERROR 3
39
40
#define WM_BYE (WM_USER+2)
41
#define WPARAM_BYE_SEND 0
42
#define WPARAM_BYE_RECV 1
43
44
#define WM_CHESSMAN (WM_USER+3)
45
#define WPARAM_PUT_PLAYER_CHESSMAN 0
46
#define WPARAM_PUT_ENEMY_CHESSMAN 1
47
#define WPARAM_PLAYER_ASK_FOR_REPUT_CHESSMAN 2
48
#define WPARAM_ENEMY_ASK_FOR_REPUT_CHESSMAN 3
49
#define WPARAM_ENEMY_AGREE_REPUT_CHESSMAN 4
50
#define WPARAM_ENEMY_DISAGREE_REPUT_CHESSMAN 5
51
52
#define WM_CHAT_WORDS (WM_USER+4)
53
#define WPARAM_CHAT_WORDS_SEND 0
54
#define WPARAM_CHAT_WORDS_RECV 1
55
#define WPARAM_CHAT_WORDS_RECV_CONTINUE 2
56
57
#define WM_GAME (WM_USER+5)
58
#define WPARAM_PLAYER_ASK_FOR_NEW_GAME 0
59
#define WPARAM_ENEMY_ASK_FOR_NEW_GAME 1
60
#define WPARAM_ENEMY_AGREE_NEW_GAME 2
61
#define WPARAM_ENEMY_DISAGREE_NEW_GAME 3
62
63
64
65
// 下棋界面
66
#define CHESS_DIST_LT 20
67
#define CHESS_QUAD_LEN 29
68
#define CHESS_CHESSMAN_LEN 28
69
#define CHESS_CHESSMAN_HALF_LEN (CHESS_CHESSMAN_LEN/2)
70
#define CHESS_BOARD_LEN 446
71
#define CHESS_BOARD_LEFT 0
72
#define CHESS_BOARD_TOP 0
73
#define CHESS_POINT_NUM_HV 15
74
#define CHESS_TYPE_SPACE 0
75
#define CHESS_TYPE_BLACK 1
76
#define CHESS_TYPE_WHITE 2
77
#define CHESS_TYPE_TOTAL 3
78
79
80
#endif
81
CClientServer.h
1
#ifndef CCLIENTSERVER_H_INCLUDED
2
#define CCLIENTSERVER_H_INCLUDED
3
4
5
#include "DetermineServerClient.h"
6
#include "ChessCommon.h"
7
#include "CWsData.h"
8
#ifdef SERVER_DEFINED
9
#include "CWsServer.h"
10
#else
11
#include "CWsClient.h"
12
#include "GetServerIP.h"
13
#endif
14
15
16
class CClientServer
17

{
18
public :
19
CClientServer();
20
~CClientServer();
21
22
BOOL Initialize( VOID );
23
BOOL IsInitSucceeded( VOID );
24
25
BOOL SendCmd_Bye( VOID );
26
BOOL SendCmd_PutChessman( DWORD dwX, DWORD dwY );
27
BOOL SendCmd_ChatWords( const char *szWords, int cbWords );
28
BOOL SendCmd_AskForReputChessman( VOID );
29
BOOL SendCmd_AgreeReputChessman( VOID );
30
BOOL SendCmd_DisgreeReputChessman( VOID );
31
BOOL SendCmd_AskForNewGame( VOID );
32
BOOL SendCmd_AgreeNewGame( VOID );
33
BOOL SendCmd_DisgreeNewGame( VOID );
34
35
BOOL SendCmd( DWORD dwCmdType, const char *CmdParam=0, int cbParam=0 );
36
BOOL ReceiveCmd( DWORD &dwCmdType, char *CmdParam, int &cbParam );
37
38
private :
39
CWsData data;
40
#ifdef SERVER_DEFINED
41
CWsServer cs;
42
#else
43
CWsClient cs;
44
#endif
45
BOOL bInitSucceeded;
46
};
47
48
49
#endif
50
CClientServer.cpp
1
#include "CClientServer.h"
2
3
4
#ifdef SERVER_DEFINED
5
CClientServer::CClientServer():cs(SERVER_PORT),bInitSucceeded(0)
{
6
#else
7
CClientServer::CClientServer():cs(SERVER_PORT,::GetServerIP()),bInitSucceeded(0)
{
8
#endif
9
}
10
11
CClientServer::~CClientServer()
{
12
}
13
14
//------------------------------------------------------------------------------------------------
15
BOOL CClientServer::Initialize( VOID )
{
16
bInitSucceeded = 0;
17
SOCKET sok = INVALID_SOCKET;
18
if( ! cs.ConnectClientServer( sok ) ) return 0;
19
if( ! data.SetSocket( sok ) ) return 0;
20
bInitSucceeded = 1;
21
return 1;
22
}
23
24
BOOL CClientServer::IsInitSucceeded( VOID )
{
25
return bInitSucceeded;
26
}
27
28
//------------------------------------------------------------------------------------------------
29
BOOL CClientServer::SendCmd_Bye( VOID )
{
30
return SendCmd( CMD_BYE );
31
}
32
33
BOOL CClientServer::SendCmd_PutChessman( DWORD dwX, DWORD dwY )
{
34
char sz[4];
35
::CWsData::DwordToCharHL( MAKELPARAM( dwX, dwY ), sz );
36
return SendCmd( CMD_PUT_CHESSMAN, sz, 4 );
37
}
38
39
BOOL CClientServer::SendCmd_ChatWords( const char *szWords, int cbWords )
{
40
int i=0;
41
while( cbWords > CMD_PARAM_LEN )
{
42
if( ! SendCmd( CMD_CHAT_WORDS_CONTINUE, szWords+i, CMD_PARAM_LEN ) )
{
43
return 0;
44
}
45
i += CMD_PARAM_LEN;
46
cbWords -= CMD_PARAM_LEN;
47
}
48
return SendCmd( CMD_CHAT_WORDS, szWords+i, cbWords );
49
}
50
51
BOOL CClientServer::SendCmd_AskForReputChessman( VOID )
{
52
return SendCmd( CMD_ASK_FOR_REPUT_CHESSMAN );
53
}
54
55
BOOL CClientServer::SendCmd_AgreeReputChessman( VOID )
{
56
return SendCmd( CMD_AGREE_REPUT_CHESSMAN );
57
}
58
59
BOOL CClientServer::SendCmd_DisgreeReputChessman( VOID )
{
60
return SendCmd( CMD_DISAGREE_REPUT_CHESSMAN );
61
}
62
63
BOOL CClientServer::SendCmd_AskForNewGame( VOID )
{
64
return SendCmd( CMD_ASK_FOR_NEW_GAME );
65
}
66
67
BOOL CClientServer::SendCmd_AgreeNewGame( VOID )
{
68
return SendCmd( CMD_AGREE_NEW_GAME );
69
}
70
71
BOOL CClientServer::SendCmd_DisgreeNewGame( VOID )
{
72
return SendCmd( CMD_DISAGREE_NEW_GAME );
73
}
74
75
//-----------------------------------------------------------------------------------------------------------
76
BOOL CClientServer::SendCmd( DWORD dwCmdType, const char *CmdParam, int cbParam )
{
77
if( ! bInitSucceeded ) return 0;
78
if( cbParam < 0 ) return 0;
79
if( ! data.SendDword( cbParam+4 ) ) return 0;
80
if( ! data.SendDword( dwCmdType ) ) return 0;
81
if( CmdParam && (cbParam>0) )
{
82
if( ! data.SendData( CmdParam, cbParam ) ) return 0;
83
}
84
return 1;
85
}
86
87
BOOL CClientServer::ReceiveCmd( DWORD &dwCmdType, char *CmdParam, int &cbParam )
{
88
if( ! bInitSucceeded ) return 0;
89
DWORD dwLen;
90
if( ! data.ReceiveDword( dwLen ) ) return 0;
91
if( dwLen < 4 ) return 0;
92
if( ! data.ReceiveDword( dwCmdType ) ) return 0;
93
cbParam = dwLen - 4;
94
if( cbParam == 0 ) return 1;
95
if( ! data.ReceiveData( CmdParam, cbParam ) ) return 0;
96
return 1;
97
}
98
CChessPainter.h
1
#ifndef CCHESSPAINTER_H_INCLUDED
2
#define CCHESSPAINTER_H_INCLUDED
3
4
5
#include "ChessCommon.h"
6
#include "resource.h"
7
#include "winsock2.h"
8
9
10
class CChessPainter
11

{
12
public :
13
CChessPainter();
14
~CChessPainter();
15
16
BOOL ClearChessboard( VOID );
17
BOOL PutChessman( int posX, int posY, int chessmanType, BOOL bIsInBoard=1 );
18
BOOL EraseLastChessman( BOOL bErase=1 );
19
BOOL PaintChess( HWND hWnd );
20
BOOL PaintChess( HDC hdcWnd );
21
int GetTotChessmanPut( VOID );
22
BOOL PosClientToBoard( int xClient, int yClient, int &xBoard, int &yBoard );
23
BOOL PosBoardToClient( int xBoard, int yBoard, int &xClient, int &yClient );
24
25
private :
26
BOOL LoadRes( VOID );
27
BOOL FreeRes( VOID );
28
29
int iChessmanType[CHESS_POINT_NUM_HV][CHESS_POINT_NUM_HV];
30
int iLastX, iLastY, iTotChessmanPut;
31
32
static int iTotChessPainter;
33
static HBITMAP hbmpChessboard, hbmpChessmanWhite, hbmpChessmanBlack, hbmpChessmanMask;
34
};
35
36
37
#endif
38
CChessPainter.cpp
1
#include "CChessPainter.h"
2
3
4
int CChessPainter::iTotChessPainter = 0;
5
HBITMAP CChessPainter::hbmpChessboard = 0;
6
HBITMAP CChessPainter::hbmpChessmanWhite = 0;
7
HBITMAP CChessPainter::hbmpChessmanBlack = 0;
8
HBITMAP CChessPainter::hbmpChessmanMask = 0;
9
//-----------------------------------------------------------------------------------------------------------
10
CChessPainter::CChessPainter()
{
11
if( ++iTotChessPainter == 1 )
{
12
LoadRes();
13
}
14
ClearChessboard();
15
}
16
17
CChessPainter::~CChessPainter()
{
18
if( --iTotChessPainter == 0 )
{
19
FreeRes();
20
}
21
}
22
//----------------------------------------------------------------------------------------------------------
23
BOOL CChessPainter::ClearChessboard( VOID )
{
24
::memset( iChessmanType, 0, sizeof(iChessmanType) );
25
iTotChessmanPut = 0;
26
iLastX = iLastY = -1;
27
return 1;
28
}
29
30
BOOL CChessPainter::PutChessman( int posX, int posY, int chessmanType, BOOL bIsInBoard )
{
31
if( ! bIsInBoard )
{
32
PosClientToBoard( posX, posY, posX, posY );
33
}
34
if( (posX<0) || (CHESS_POINT_NUM_HV<=posX) || (posY<0) || (CHESS_POINT_NUM_HV<=posY) )
{
35
return 0;
36
}
37
int ict = iChessmanType[posX][posY];
38
switch( chessmanType )
{
39
case CHESS_TYPE_BLACK :
40
case CHESS_TYPE_WHITE :
41
if( ( ict != CHESS_TYPE_WHITE ) && ( ict != CHESS_TYPE_BLACK ) )
{
42
iChessmanType[posX][posY] = chessmanType;
43
++iTotChessmanPut;
44
iLastX = posX;
45
iLastY = posY;
46
return 1;
47
}
48
}
49
return 0;
50
}
51
52
BOOL CChessPainter::EraseLastChessman( BOOL bErase )
{
53
if( (iLastX<0) || (iLastY<0) )
{
54
return 0;
55
}
56
if( bErase )
{
57
iChessmanType[iLastX][iLastY] = CHESS_TYPE_SPACE;
58
--iTotChessmanPut;
59
iLastX = iLastY = -1;
60
}
61
return 1;
62
}
63
64
BOOL CChessPainter::PaintChess( HWND hWnd )
{
65
HDC hdc = ::GetDC( hWnd );
66
if( hdc == 0 )
{
67
return 0;
68
}
69
PaintChess( hdc );
70
::ReleaseDC( hWnd, hdc );
71
return 1;
72
}
73
74
BOOL CChessPainter::PaintChess( HDC hdcWnd )
{
75
if( hdcWnd == 0 )
{
76
return 0;
77
}
78
HDC hdcChessboard, hdcMask, hdcChessman[CHESS_TYPE_TOTAL];
79
80
hdcChessboard = ::CreateCompatibleDC( hdcWnd );
81
hdcMask = ::CreateCompatibleDC( hdcWnd );
82
hdcChessman[CHESS_TYPE_BLACK] = ::CreateCompatibleDC( hdcWnd );
83
hdcChessman[CHESS_TYPE_WHITE] = ::CreateCompatibleDC( hdcWnd );
84
85
::SelectObject( hdcChessboard, hbmpChessboard );
86
::SelectObject( hdcMask, hbmpChessmanMask );
87
::SelectObject( hdcChessman[CHESS_TYPE_BLACK], hbmpChessmanBlack );
88
::SelectObject( hdcChessman[CHESS_TYPE_WHITE], hbmpChessmanWhite );
89
90
int x, y, tx, ty, t;
91
::BitBlt( hdcWnd, CHESS_BOARD_LEFT, CHESS_BOARD_TOP, CHESS_BOARD_LEN, CHESS_BOARD_LEN,
92
hdcChessboard, 0, 0, SRCCOPY );
93
for( x=0; x<CHESS_POINT_NUM_HV; ++x )
{
94
for( y=0; y<CHESS_POINT_NUM_HV; ++y )
{
95
if( t = iChessmanType[x][y] )
{
96
// MaskBlt
97
// TransparentBlt
98
tx = x * CHESS_QUAD_LEN + CHESS_DIST_LT + CHESS_BOARD_LEFT - CHESS_CHESSMAN_HALF_LEN;
99
ty = y * CHESS_QUAD_LEN + CHESS_DIST_LT + CHESS_BOARD_TOP - CHESS_CHESSMAN_HALF_LEN;
100
::BitBlt( hdcWnd, tx, ty, CHESS_CHESSMAN_LEN, CHESS_CHESSMAN_LEN,
101
hdcMask, 0, 0, MERGEPAINT );
102
::BitBlt( hdcWnd, tx, ty, CHESS_CHESSMAN_LEN, CHESS_CHESSMAN_LEN,
103
hdcChessman[t], 0, 0, SRCAND );
104
}
105
}
106
}
107
108
::DeleteDC( hdcChessboard );
109
::DeleteDC( hdcMask );
110
::DeleteDC( hdcChessman[CHESS_TYPE_BLACK] );
111
::DeleteDC( hdcChessman[CHESS_TYPE_WHITE] );
112
return 1;
113
}
114
115
int CChessPainter::GetTotChessmanPut( VOID )
{
116
return iTotChessmanPut;
117
}
118
119
BOOL CChessPainter::PosClientToBoard( int xClient, int yClient, int &xBoard, int &yBoard )
{
120
xBoard = ( xClient - CHESS_DIST_LT - CHESS_BOARD_LEFT + CHESS_QUAD_LEN / 2 ) / CHESS_QUAD_LEN;
121
yBoard = ( yClient - CHESS_DIST_LT - CHESS_BOARD_TOP + CHESS_QUAD_LEN / 2 ) / CHESS_QUAD_LEN;
122
return 1;
123
}
124
125
BOOL CChessPainter::PosBoardToClient( int xBoard, int yBoard, int &xClient, int &yClient )
{
126
xClient = xBoard * CHESS_QUAD_LEN + CHESS_DIST_LT + CHESS_BOARD_LEFT;
127
yClient = yBoard * CHESS_QUAD_LEN + CHESS_DIST_LT + CHESS_BOARD_TOP;
128
return 1;
129
}
130
//-------------------------------------------------------------------------------------------------------------
131
BOOL CChessPainter::LoadRes( VOID )
{
132
if( hbmpChessboard || hbmpChessmanWhite || hbmpChessmanBlack || hbmpChessmanMask )
{
133
return 0;
134
}
135
HINSTANCE hInst = ::GetModuleHandle( 0 );
136
if( hInst == 0 )
{
137
return 0;
138
}
139
#define LOAD(h,id) h = ::LoadBitmap( hInst, MAKEINTRESOURCE(id) )
140
LOAD( hbmpChessboard, IDB_CHESSBOARD );
141
LOAD( hbmpChessmanWhite, IDB_CHESSMAN_WHITE );
142
LOAD( hbmpChessmanBlack, IDB_CHESSMAN_BLACK );
143
LOAD( hbmpChessmanMask, IDB_CHESSMAN_MASK );
144
#undef LOAD
145
return 1;
146
}
147
148
BOOL CChessPainter::FreeRes( VOID )
{
149
#define FREE(h) \
150
if( h )
{ \
151
::DeleteObject( h ); \
152
h = 0; \
153
}
154
FREE( hbmpChessboard )
155
FREE( hbmpChessmanWhite )
156
FREE( hbmpChessmanBlack )
157
FREE( hbmpChessmanMask )
158
#undef FREE
159
return 1;
160
}
161
