PDMS PML二次开发-Pipe Flow Indicator

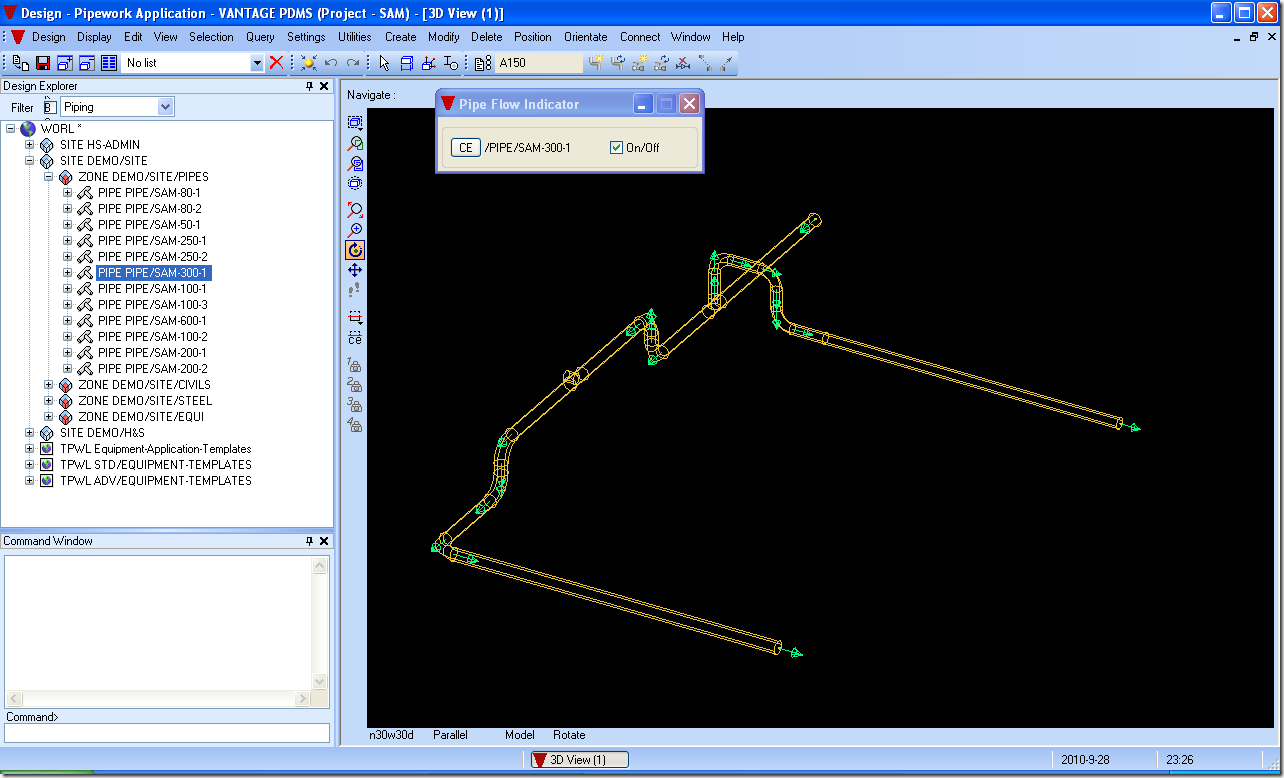

AVEVA PDMS中管路流向显示程序:
PML程序源代码如下:
---------------------------------------------------------------------------------
--
-- (c) Copyright 2010 to Current Year
-- Shanghai Hoto Petrochemical Engineering Co., Ltd
-- eryar All rights reserved.
--
-- File: pipeflow.pmlfrm
-- Type: Form Definition
-- Group: General Application
-- Keyword: GEN
-- Module: DESIGN
--
-- Author: eryar@163.com
-- Created: 2010-09-17 15:15
--
-- Description: Indicate pipe media flow direction.
--
---------------------------------------------------------------------------------
setup form !!pipeflow
!This.FormTitle = 'Pipe Flow Indicator'
!This.Cancelcall = '!This.close()'
!This.FormRevision = '1.0v'
frame .pipeFlowFrame
button .bCE 'CE'
para .ceName at xmax ymin width 16 line 1
toggle .turn 'On/Off' at xmax ymin
exit
exit
---------------------------------------------------------------------------------
--
-- Method: pipeflow()
--
-- Description:
--
-- Method Type: Function/Procedure
-- Arguments:
-- [#] [R/RW] [Data Type] [Description]
-- Return:
-- [Data Type] [Description]
--
---------------------------------------------------------------------------------
define method .pipeflow()
!this.bCE.callback = '!this.getCE()'
!this.turn.callback = '!this.apply()'
endmethod
---------------------------------------------------------------------------------
--
-- Method: getCE()
--
-- Description: get current element for indicate pipe media flow
--
-- Method Type: Function/Procedure
-- Arguments:
-- [#] [R/RW] [Data Type] [Description]
-- Return:
-- [Data Type] [Description]
--
---------------------------------------------------------------------------------
define method .getCE()
--
!currentElement = ce
!elementName = !currentElement.Name
!this.ceName.val= !elementName
endmethod
---------------------------------------------------------------------------------
--
-- Method: apply()
--
-- Description:
--
-- Method Type: Function/Procedure
-- Arguments:
-- [#] [R/RW] [Data Type] [Description]
-- Return:
-- [Data Type] [Description]
--
---------------------------------------------------------------------------------
define method .apply()
-- remember where we came in
!memory = ce
-- turn on pipe media flow
if(!this.turn.val) then
-- collect all branches
var !branches collect all bran for $!this.ceName.val
do !i index !branches
-- handle every branch
!branch = !branches[$!i].dbref()
!hPos = !branch.hPosition
!tPos = !branch.tPosition
!hDir = !branch.hDirection
!tDir = !branch.tDirection
!hBore = !branch.hBore
!tDir = !tDir.Opposite()
!arrow = !hBore.real() * 2
-- add two aid arrow at head and tail
AID ARROW AT $!hPos DIR $!hDir HEIGHT $!arrow PROPORTION 0.35
AID ARROW AT $!tPos DIR $!tDir HEIGHT $!arrow PROPORTION 0.35
-- add aid arrow on elbow
var !elbows collect all elbow for $!branch
do !j index !elbows
!elbow = !elbows[$!j].dbref()
!arrive = !elbow.Arrive
!leave = !elbow.Leave
$!elbow
var !arrivePos P$!<arrive> position wrt world
handle (2,201)
-- element does not have attribute PPOS
skip
endhandle
var !leavePos P$!<leave> position wrt world
handle (2,201)
-- element does not have attribute PPOS
skip
endhandle
var !arriveDir P$!<arrive> direction wrt world
var !leaveDir P$!<leave> direction wrt world
!arriveDir = !arriveDir.Direction().Opposite().string()
--
AID ARROW AT $!arrivePos DIR $!arriveDir HEIGHT $!arrow PROPORTION 0.35
AID ARROW AT $!leavePos DIR $!leaveDir HEIGHT $!arrow PROPORTION 0.35
enddo
-- add aid arrow on valve
var !valves collect all valve for $!branch
do !h index !valves
!valve = !valves[$!h].dbref()
!vPos = !valve.Position
--
AID ARROW AT $!vPos DIR $!arriveDir HEIGHT $!hBore PROPORTION 0.8
enddo
-- add aid arrow on tubi
var !tubes collect all tubi for $!branch
do !k index !tubes
!tube = !tubes[$!k].dbref()
!itsLen = !tube.itLength
!itsPos = !tube.itPosition
enddo
enddo
else
-- turn off pipe media flow, clear all aid arrow
AID CLEAR ALL
endif
-- go back
!!ce = !memory
endmethod
---------------------------------------------------------------------------------
--
-- Method: close()
--
-- Description:
--
-- Method Type: Function/Procedure
-- Arguments:
-- [#] [R/RW] [Data Type] [Description]
-- Return:
-- [Data Type] [Description]
--
---------------------------------------------------------------------------------
define method .close()
-- after close the form, clear all aid arrow
AID CLEAR ALL
endmethod
---------------------------------------------------------------------------------
