// Desc: 主程序源文件
//=============================================================================
#include "dxstdafx.h"
#include "resource.h"
#pragma warning(disable: 4995)
//-----------------------------------------------------------------------------
// 全局变量
//-----------------------------------------------------------------------------
ID3DXFont* g_pFont = NULL; //ID3DXFont字体对象
ID3DXSprite* g_pTextSprite = NULL; //ID3DXSprite文本精灵对象
bool g_bShowHelp = true; //标识是否显示简单说明文本
CDXUTDialogResourceManager g_DialogResourceManager; //对话框资源管理器
CD3DSettingsDlg g_SettingsDlg; //Direct3D设备设置对话框
CDXUTDialog g_HUD; //对话框
CDXUTDialog g_SampleUI; //对话框
LPD3DXMESH g_pMesh = NULL; //原网格模型
D3DMATERIAL9* g_pMeshMaterials = NULL; //网格模型材质
LPDIRECT3DTEXTURE9* g_pMeshTextures = NULL; //网格模型纹理
DWORD g_dwNumMaterials = 0L; //材质数量
LPD3DXBUFFER g_pAdjacencyBuffer = NULL; //网格模型面邻接信息
LPD3DXMESH g_pEnhancedMesh = NULL; //增强后的网格模型
UINT g_dwNumSegs = 1; //
//-----------------------------------------------------------------------------
// 控件ID
//-----------------------------------------------------------------------------
#define IDC_TOGGLEFULLSCREEN 1
#define IDC_TOGGLEREF 2
#define IDC_CHANGEDEVICE 3
#define IDC_SEGMENT 4
//-----------------------------------------------------------------------------
// Desc: 函数声明
//------------------------------------------------------------------------------
bool CALLBACK IsDeviceAcceptable( D3DCAPS9* pCaps, D3DFORMAT AdapterFormat, D3DFORMAT BackBufferFormat, bool bWindowed, void* pUserContext );
bool CALLBACK ModifyDeviceSettings( DXUTDeviceSettings* pDeviceSettings, const D3DCAPS9* pCaps, void* pUserContext );
HRESULT CALLBACK OnCreateDevice( IDirect3DDevice9* pd3dDevice, const D3DSURFACE_DESC* pBackBufferSurfaceDesc, void* pUserContext );
HRESULT CALLBACK OnResetDevice( IDirect3DDevice9* pd3dDevice, const D3DSURFACE_DESC* pBackBufferSurfaceDesc, void* pUserContext );
void CALLBACK OnFrameMove( IDirect3DDevice9* pd3dDevice, double fTime, float fElapsedTime, void* pUserContext );
void CALLBACK OnFrameRender( IDirect3DDevice9* pd3dDevice, double fTime, float fElapsedTime, void* pUserContext );
LRESULT CALLBACK MsgProc( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam, bool* pbNoFurtherProcessing, void* pUserContext );
void CALLBACK KeyboardProc( UINT nChar, bool bKeyDown, bool bAltDown, void* pUserContext );
void CALLBACK OnGUIEvent( UINT nEvent, int nControlID, CDXUTControl* pControl, void* pUserContext );
void CALLBACK OnLostDevice( void* pUserContext );
void CALLBACK OnDestroyDevice( void* pUserContext );
void InitApp();
void RenderText();
//-----------------------------------------------------------------------------
// Desc: 入口函数
//-----------------------------------------------------------------------------
INT WINAPI WinMain( HINSTANCE, HINSTANCE, LPSTR, int )
{
//为Debug配置启用运行时内存检查功能
#if defined(DEBUG) | defined(_DEBUG)
_CrtSetDbgFlag( _CRTDBG_ALLOC_MEM_DF | _CRTDBG_LEAK_CHECK_DF );
#endif
//设置回调函数
DXUTSetCallbackDeviceCreated( OnCreateDevice );
DXUTSetCallbackDeviceReset( OnResetDevice );
DXUTSetCallbackDeviceLost( OnLostDevice );
DXUTSetCallbackDeviceDestroyed( OnDestroyDevice );
DXUTSetCallbackMsgProc( MsgProc );
DXUTSetCallbackKeyboard( KeyboardProc );
DXUTSetCallbackFrameRender( OnFrameRender );
DXUTSetCallbackFrameMove( OnFrameMove );
//应用程序相关的初始化
InitApp();
//初始化DXUT, 创建窗口, 创建Direct3D设备对象
DXUTInit( true, true, true );
DXUTSetCursorSettings( true, true );
DXUTCreateWindow( L"EnhanceMesh" );
DXUTCreateDevice( D3DADAPTER_DEFAULT, true, 640, 480, IsDeviceAcceptable, ModifyDeviceSettings );
//进入消息循环和场景渲染
DXUTMainLoop();
//在此进行应用程序相关的清除工作
return DXUTGetExitCode();
}
//-----------------------------------------------------------------------------
// Desc: 应用程序相关初始化
//-----------------------------------------------------------------------------
void InitApp()
{
//初始化对话框
g_SettingsDlg.Init( &g_DialogResourceManager );
g_HUD.Init( &g_DialogResourceManager );
g_SampleUI.Init( &g_DialogResourceManager );
//为g_HUD对话框设置消息处理函数,添加控件
g_HUD.SetCallback( OnGUIEvent ); int iY = 10;
g_HUD.AddButton( IDC_TOGGLEFULLSCREEN, L"Toggle full screen", 35, iY, 125, 22 );
g_HUD.AddButton( IDC_TOGGLEREF, L"Toggle REF (F3)", 35, iY += 24, 125, 22 );
g_HUD.AddButton( IDC_CHANGEDEVICE, L"Change device (F2)", 35, iY += 24, 125, 22, VK_F2 );
//为g_SampleUI对话框设置消息处理函数,添加控件
g_SampleUI.SetCallback( OnGUIEvent ); iY = 10;
g_SampleUI.AddSlider( IDC_SEGMENT, 10, 36, 150, 24);
g_SampleUI.GetSlider( IDC_SEGMENT )->SetRange( 1, 10 );
g_SampleUI.GetSlider( IDC_SEGMENT )->SetValue( 1 );
}
//-----------------------------------------------------------------------------
// Desc: 设备能力检查
//-----------------------------------------------------------------------------
bool CALLBACK IsDeviceAcceptable( D3DCAPS9* pCaps, D3DFORMAT AdapterFormat,
D3DFORMAT BackBufferFormat, bool bWindowed,
void* pUserContext )
{
//检查后台缓冲区格式是否支持Alpha混合等操作(post pixel blending operations)
IDirect3D9* pD3D = DXUTGetD3DObject();
if( FAILED( pD3D->CheckDeviceFormat( pCaps->AdapterOrdinal, pCaps->DeviceType,
AdapterFormat, D3DUSAGE_QUERY_POSTPIXELSHADER_BLENDING,
D3DRTYPE_TEXTURE, BackBufferFormat ) ) )
return false;
return true;
}
//-----------------------------------------------------------------------------
// Desc: 修改Direct3D渲染设备设置
//-----------------------------------------------------------------------------
bool CALLBACK ModifyDeviceSettings( DXUTDeviceSettings* pDeviceSettings,
const D3DCAPS9* pCaps, void* pUserContext )
{
//如果不支持硬件顶点处理则使用软件顶点处理
if( (pCaps->DevCaps & D3DDEVCAPS_HWTRANSFORMANDLIGHT) == 0)
{
pDeviceSettings->BehaviorFlags = D3DCREATE_SOFTWARE_VERTEXPROCESSING;
}
//如果使用参考设备,则弹出警告对话框
static bool s_bFirstTime = true;
if( s_bFirstTime )
{
s_bFirstTime = false;
if( pDeviceSettings->DeviceType == D3DDEVTYPE_REF )
DXUTDisplaySwitchingToREFWarning();
}
return true;
}
//-----------------------------------------------------------------------------
// Desc: 辅助函数, 从绝对路径中提取纹理文件名
//-----------------------------------------------------------------------------
void RemovePathFromFileName(LPSTR fullPath, LPWSTR fileName)
{
//先将fullPath的类型变换为LPWSTR
WCHAR wszBuf[MAX_PATH];
MultiByteToWideChar( CP_ACP, 0, fullPath, -1, wszBuf, MAX_PATH );
wszBuf[MAX_PATH-1] = L'\0';
WCHAR* wszFullPath = wszBuf;
//从绝对路径中提取文件名
LPWSTR pch=wcsrchr(wszFullPath,'\\');
if (pch)
lstrcpy(fileName, ++pch);
else
lstrcpy(fileName, wszFullPath);
}
//--------------------------------------------------------------------------------------
// Desc: 生成一个镶嵌后的网格模型
//--------------------------------------------------------------------------------------
HRESULT GenerateEnhancedMesh( IDirect3DDevice9 *pd3dDevice, UINT dwNewNumSegs )
{
HRESULT hr = S_OK;
if( g_pMesh == NULL )
return E_FAIL;
LPD3DXMESH pEnhancedMeshTemp = NULL;
LPD3DXMESH pMeshTemp = NULL;
//用32位索引代替16位索引
V_RETURN(g_pMesh->CloneMeshFVF( D3DXMESH_MANAGED | D3DXMESH_32BIT,
g_pMesh->GetFVF(), pd3dDevice, &pMeshTemp));
//按N-Patch镶嵌规则, 对原始网格模型进行镶嵌
V_RETURN(D3DXTessellateNPatches(pMeshTemp, (DWORD*)g_pAdjacencyBuffer->GetBufferPointer(),
(float)dwNewNumSegs, FALSE, &pEnhancedMeshTemp, NULL));
pMeshTemp->Release();
DWORD dwMeshEnhancedFlags = pEnhancedMeshTemp->GetOptions() & D3DXMESH_32BIT;
if( (dwMeshEnhancedFlags & D3DXMESH_32BIT) == 0)
dwMeshEnhancedFlags |= D3DXMESH_WRITEONLY;
hr = pEnhancedMeshTemp->CloneMeshFVF( dwMeshEnhancedFlags, g_pMesh->GetFVF(),
pd3dDevice, &pMeshTemp );
SAFE_RELEASE( pEnhancedMeshTemp );
SAFE_RELEASE( g_pEnhancedMesh );
g_pEnhancedMesh = pMeshTemp;
return S_OK;
}
//-----------------------------------------------------------------------------
// Desc: 在此创建管理内存资源对象
//-----------------------------------------------------------------------------
HRESULT CALLBACK OnCreateDevice( IDirect3DDevice9* pd3dDevice,
const D3DSURFACE_DESC* pBackBufferSurfaceDesc,
void* pUserContext )
{
HRESULT hr;
V_RETURN( g_DialogResourceManager.OnCreateDevice( pd3dDevice ) );
V_RETURN( g_SettingsDlg.OnCreateDevice( pd3dDevice ) );
//创建字体
V_RETURN( D3DXCreateFont( pd3dDevice, 15, 0, FW_BOLD, 1, FALSE, DEFAULT_CHARSET,
OUT_DEFAULT_PRECIS, DEFAULT_QUALITY, DEFAULT_PITCH | FF_DONTCARE,
L"Arial", &g_pFont ) );
//加载网格模型
LPD3DXBUFFER pD3DXMtrlBuffer;
V_RETURN( D3DXLoadMeshFromX( L"Dwarf.x", D3DXMESH_MANAGED,
pd3dDevice, &g_pAdjacencyBuffer,
&pD3DXMtrlBuffer, NULL, &g_dwNumMaterials,
&g_pMesh ) );
//提取材质和纹理文件路径
D3DXMATERIAL* d3dxMaterials = (D3DXMATERIAL*)pD3DXMtrlBuffer->GetBufferPointer();
g_pMeshMaterials = new D3DMATERIAL9[g_dwNumMaterials];
g_pMeshTextures = new LPDIRECT3DTEXTURE9[g_dwNumMaterials];
for( DWORD i=0; i<g_dwNumMaterials; i++ )
{
g_pMeshMaterials[i] = d3dxMaterials[i].MatD3D;
g_pMeshMaterials[i].Ambient = g_pMeshMaterials[i].Diffuse;
//创建纹理
WCHAR fullname[256];
RemovePathFromFileName(d3dxMaterials[i].pTextureFilename,fullname);
g_pMeshTextures[i] = NULL;
if( d3dxMaterials[i].pTextureFilename != NULL && lstrlen(fullname)>0 )
{
V_RETURN( D3DXCreateTextureFromFile( pd3dDevice, fullname, &g_pMeshTextures[i] ) );
}
}
pD3DXMtrlBuffer->Release();
//生成增强网格模型
V_RETURN( GenerateEnhancedMesh( pd3dDevice, g_dwNumSegs ) );
return S_OK;
}
//-----------------------------------------------------------------------------
// Desc: 在此创建默认内存类型资源对象
//-----------------------------------------------------------------------------
HRESULT CALLBACK OnResetDevice( IDirect3DDevice9* pd3dDevice,
const D3DSURFACE_DESC* pBackBufferSurfaceDesc,
void* pUserContext )
{
HRESULT hr;
V_RETURN( g_DialogResourceManager.OnResetDevice() );
V_RETURN( g_SettingsDlg.OnResetDevice() );
//设置对话框位置和尺寸
g_HUD.SetLocation( pBackBufferSurfaceDesc->Width-170, 0 );
g_HUD.SetSize( 170, 170 );
g_SampleUI.SetLocation( 0, pBackBufferSurfaceDesc->Height-80 );
g_SampleUI.SetSize( pBackBufferSurfaceDesc->Width, 50 );
g_SampleUI.GetControl( IDC_SEGMENT )->SetSize( pBackBufferSurfaceDesc->Width - 20, 16 );
//恢复字体
if( g_pFont )
V_RETURN( g_pFont->OnResetDevice() );
//创建ID3DXSprite接口对象
V_RETURN( D3DXCreateSprite( pd3dDevice, &g_pTextSprite ) );
//设置世界矩阵
D3DXMATRIXA16 matWorld;
D3DXMatrixTranslation( &matWorld, 0, -0.7f, 0);
pd3dDevice->SetTransform( D3DTS_WORLD, &matWorld );
//设置观察矩阵
D3DXMATRIXA16 matView;
D3DXVECTOR3 vEyePt( 0.0f, 0.0f,-4 );
D3DXVECTOR3 vLookatPt( 0.0f, 0.0f, 0.0f );
D3DXVECTOR3 vUpVec( 0.0f, 1.0f, 0.0f );
D3DXMatrixLookAtLH( &matView, &vEyePt, &vLookatPt, &vUpVec );
pd3dDevice->SetTransform( D3DTS_VIEW, &matView );
//设置投影矩阵
D3DXMATRIXA16 matProj;
float fAspectRatio = (float)pBackBufferSurfaceDesc->Width / pBackBufferSurfaceDesc->Height;
D3DXMatrixPerspectiveFovLH( &matProj, D3DX_PI/4, fAspectRatio, 1.0f, 100.0f );
pd3dDevice->SetTransform( D3DTS_PROJECTION, &matProj );
//设置环境光
pd3dDevice->SetRenderState( D3DRS_AMBIENT, 0xffffffff );
return S_OK;
}
//-----------------------------------------------------------------------------
// Desc: 更新场景
//-----------------------------------------------------------------------------
void CALLBACK OnFrameMove( IDirect3DDevice9* pd3dDevice, double fTime,
float fElapsedTime, void* pUserContext )
{
}
//-----------------------------------------------------------------------------
// Desc: 渲染场景
//-----------------------------------------------------------------------------
void CALLBACK OnFrameRender( IDirect3DDevice9* pd3dDevice, double fTime,
float fElapsedTime, void* pUserContext )
{
HRESULT hr;
//如果正在利用Direct3D设备设置对话框进行设置, 则不渲染场景
if( g_SettingsDlg.IsActive() )
{
g_SettingsDlg.OnRender( fElapsedTime );
return;
}
//清除后台颜色缓冲区和深度缓冲区
V( pd3dDevice->Clear(0, NULL, D3DCLEAR_TARGET | D3DCLEAR_ZBUFFER,
D3DCOLOR_ARGB(0, 45, 50, 170), 1.0f, 0) );
//渲染场景
if( SUCCEEDED( pd3dDevice->BeginScene() ) )
{
for(DWORD i=0; i<g_dwNumMaterials; i++)
{
pd3dDevice->SetMaterial( &g_pMeshMaterials[i] );
pd3dDevice->SetTexture( 0, g_pMeshTextures[i]);
g_pEnhancedMesh->DrawSubset( i );
}
//渲染文本和控件
DXUT_BeginPerfEvent( DXUT_PERFEVENTCOLOR, L"HUD / Stats" );
RenderText();
V( g_HUD.OnRender( fElapsedTime ) );
V( g_SampleUI.OnRender( fElapsedTime ) );
DXUT_EndPerfEvent();
V( pd3dDevice->EndScene() );
}
}
//-----------------------------------------------------------------------------
// Desc: 渲染文本
//-----------------------------------------------------------------------------

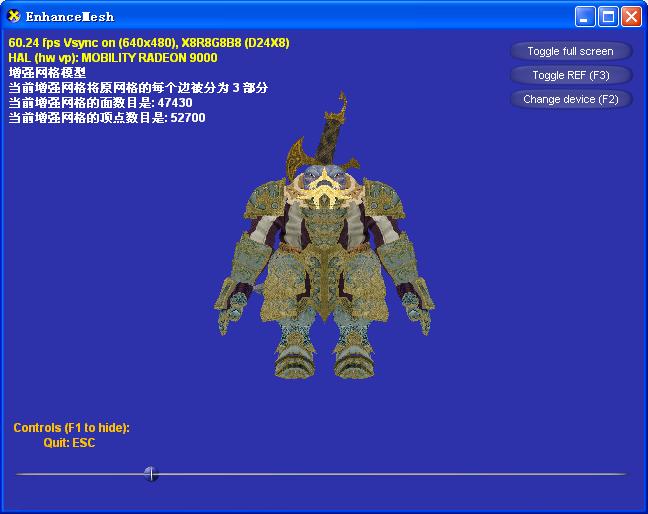

void RenderText()
{
CDXUTTextHelper txtHelper( g_pFont, g_pTextSprite, 15 );
//显示当前Direct3D设备状态和渲染帧速率
txtHelper.Begin();
txtHelper.SetInsertionPos( 5, 5 );
txtHelper.SetForegroundColor( D3DXCOLOR( 1.0f, 1.0f, 0.0f, 1.0f ) );
txtHelper.DrawTextLine( DXUTGetFrameStats(true) );
txtHelper.DrawTextLine( DXUTGetDeviceStats() );
//显示其他简要信息
txtHelper.SetForegroundColor( D3DXCOLOR( 1.0f, 1.0f, 1.0f, 1.0f ) );
txtHelper.DrawTextLine(L"增强网格模型");
txtHelper.DrawFormattedTextLine( L"当前增强网格将原网格的每个边被分为 %d 部分\n", g_dwNumSegs );
txtHelper.DrawFormattedTextLine( L"当前增强网格的面数目是: %d\n", g_pEnhancedMesh->GetNumFaces() );
txtHelper.DrawFormattedTextLine( L"当前增强网格的顶点数目是: %d\n", g_pEnhancedMesh->GetNumVertices() );
//显示简单帮助文本
const D3DSURFACE_DESC* pd3dsdBackBuffer = DXUTGetBackBufferSurfaceDesc();
if( g_bShowHelp )
{
txtHelper.SetInsertionPos( 10, pd3dsdBackBuffer->Height-15*6 );
txtHelper.SetForegroundColor( D3DXCOLOR( 1.0f, 0.75f, 0.0f, 1.0f ) );
txtHelper.DrawTextLine( L"Controls (F1 to hide):" );
txtHelper.SetInsertionPos( 40, pd3dsdBackBuffer->Height-15*5 );
txtHelper.DrawTextLine( L"Quit: ESC" );
}
else
{
txtHelper.SetInsertionPos( 10, pd3dsdBackBuffer->Height-15*2 );
txtHelper.SetForegroundColor( D3DXCOLOR( 1.0f, 1.0f, 1.0f, 1.0f ) );
txtHelper.DrawTextLine( L"Press F1 for help" );
}
txtHelper.End();
}
//-----------------------------------------------------------------------------
// Desc: 消息处理
//-----------------------------------------------------------------------------
LRESULT CALLBACK MsgProc( HWND hWnd, UINT uMsg, WPARAM wParam, LPARAM lParam,
bool* pbNoFurtherProcessing, void* pUserContext )
{
*pbNoFurtherProcessing = g_DialogResourceManager.MsgProc( hWnd, uMsg, wParam, lParam );
if( *pbNoFurtherProcessing )
return 0;
if( g_SettingsDlg.IsActive() )
{
g_SettingsDlg.MsgProc( hWnd, uMsg, wParam, lParam );
return 0;
}
*pbNoFurtherProcessing = g_HUD.MsgProc( hWnd, uMsg, wParam, lParam );
if( *pbNoFurtherProcessing )
return 0;
*pbNoFurtherProcessing = g_SampleUI.MsgProc( hWnd, uMsg, wParam, lParam );
if( *pbNoFurtherProcessing )
return 0;
return 0;
}
//-----------------------------------------------------------------------------
// Desc: 键盘消息处理
//-----------------------------------------------------------------------------
void CALLBACK KeyboardProc( UINT nChar, bool bKeyDown, bool bAltDown, void* pUserContext )
{
if( bKeyDown )
{
switch( nChar )
{
case VK_F1: g_bShowHelp = !g_bShowHelp; break;
}
}
}
//-----------------------------------------------------------------------------
// Desc: 处理各种控件消息
//-----------------------------------------------------------------------------
void CALLBACK OnGUIEvent( UINT nEvent, int nControlID, CDXUTControl* pControl,
void* pUserContext )
{
switch( nControlID )
{
case IDC_TOGGLEFULLSCREEN:
DXUTToggleFullScreen();
break;
case IDC_TOGGLEREF:
DXUTToggleREF();
break;
case IDC_CHANGEDEVICE:
g_SettingsDlg.SetActive( !g_SettingsDlg.IsActive() );
break;
case IDC_SEGMENT:
g_dwNumSegs = ((CDXUTSlider*)pControl)->GetValue();
GenerateEnhancedMesh( DXUTGetD3DDevice(), g_dwNumSegs );
break;
}
}
//-----------------------------------------------------------------------------
// Desc: 释放在OnResetDevice()中创建的资源
//-----------------------------------------------------------------------------
void CALLBACK OnLostDevice( void* pUserContext )
{
g_DialogResourceManager.OnLostDevice();
g_SettingsDlg.OnLostDevice();
if( g_pFont )
g_pFont->OnLostDevice();
SAFE_RELEASE( g_pTextSprite );
}
//------------------------------------------------------------------------------
// Desc: 释放在OnCreateDevice()中创建的资源
//------------------------------------------------------------------------------
void CALLBACK OnDestroyDevice( void* pUserContext )
{
g_DialogResourceManager.OnDestroyDevice();
g_SettingsDlg.OnDestroyDevice();
SAFE_RELEASE( g_pFont );
if( g_pMeshMaterials != NULL )
delete[] g_pMeshMaterials;
if( g_pMeshTextures )
{
for( DWORD i = 0; i < g_dwNumMaterials; i++ )
{
if( g_pMeshTextures[i] )
g_pMeshTextures[i]->Release();
}
delete[] g_pMeshTextures;
}
SAFE_RELEASE(g_pAdjacencyBuffer);
SAFE_RELEASE(g_pMesh);
SAFE_RELEASE(g_pEnhancedMesh);
}
posted on 2008-04-03 04:10
七星重剑 阅读(390)
评论(0) 编辑 收藏 引用 所属分类:
Game Graphics
