D3D中基本立体面的绘制

提示：

阅读本文需要一定的3D图形学和DirectX9基础，如果你发现阅读困难，请参阅D3D 中基本三角形面的绘制。
本文用到的坐标系统变换函数请参阅DirectX 9的坐标系统变换。

顶点顺序和背面剔除

在世界空间中，面向摄影机的三维物体的剖分三角形面为前面，是可视的；背向摄影机的三角形面称为背面，是不可视的。对于可视的前面进行渲染显示，对于不可视的背面则不进行渲染处理，这就是所谓的背面剔除。

为了省去繁杂的前面和背面的计算判断，DirectX将依据写入顶点缓冲区的三角形面3个顶点的顺（逆）时针方向来定义该面为前面或背面，以直接规定三角形面是否显示。在DirectX的默认情形下，如果写入顶点缓冲区的三角形面的3 个顶点为顺时针方向，那么这3个顶点构成的三角形面被认为是前面，必须进行渲染显示。相反，如果3个顶点的顺序为反时针，则为背面三角形，不需要渲染处理。

为了判断三角形面(v0, v1, v2)三个顶点的顺（逆）时针方向，可计算三角形面的法向量(v1 - v0) x (v2 - v0)，然后根据法向量与摄影机的视线方向向量的点积的符号来判断，负号表示三个顶点是顺时针方向，正号表示三个顶点是逆时针方向。由此可见，三角形面顶点的顺序相当于直接给出了该面的外向法向量的方向。只有外向法向量指向摄影机的一侧，三角形面才被显示，否则将被剔除而不做显示。

利用IDirect3DDevice9接口的SetRenderState函数可修改或重新设置Direct3D设备的背面剔除的渲染状态，当然该函数的功能是十分丰富的，不局限于设置背面剔除状态，来看看函数说明：

Sets a single device render-state parameter.

HRESULT SetRenderState(
  D3DRENDERSTATETYPE State,
  DWORD Value
);

Parameters

State: [in] Device state variable that is being modified. This parameter can be any member of the D3DRENDERSTATETYPE enumerated type.
Value: [in] New value for the device render state to be set. The meaning of this parameter is dependent on the value specified for State. For example, if State were D3DRS_SHADEMODE, the second parameter would be one member of the D3DSHADEMODE enumerated type.

Return Values

If the method succeeds, the return value is D3D_OK. D3DERR_INVALIDCALL is returned if one of the arguments is invalid.

我们来看看参数State使用的D3DRENDERSTATETYPE类型的详细信息：

Render states define set-up states for all kinds of vertex and pixel processing. Some render states set up vertex processing, and some set up pixel processing (see Render States (Direct3D 9)). Render states can be saved and restored using stateblocks (see State Blocks Save and Restore State (Direct3D 9)).

typedef enum D3DRENDERSTATETYPE
{
    D3DRS_ZENABLE = 7,
    D3DRS_FILLMODE = 8,
    D3DRS_SHADEMODE = 9,
    D3DRS_ZWRITEENABLE = 14,
    D3DRS_ALPHATESTENABLE = 15,
    D3DRS_LASTPIXEL = 16,
    D3DRS_SRCBLEND = 19,
    D3DRS_DESTBLEND = 20,
    D3DRS_CULLMODE = 22,
    D3DRS_ZFUNC = 23,
    D3DRS_ALPHAREF = 24,
    D3DRS_ALPHAFUNC = 25,
    D3DRS_DITHERENABLE = 26,
    D3DRS_ALPHABLENDENABLE = 27,
    D3DRS_FOGENABLE = 28,
    D3DRS_SPECULARENABLE = 29,
    D3DRS_FOGCOLOR = 34,
    D3DRS_FOGTABLEMODE = 35,
    D3DRS_FOGSTART = 36,
    D3DRS_FOGEND = 37,
    D3DRS_FOGDENSITY = 38,
    D3DRS_RANGEFOGENABLE = 48,
    D3DRS_STENCILENABLE = 52,
    D3DRS_STENCILFAIL = 53,
    D3DRS_STENCILZFAIL = 54,
    D3DRS_STENCILPASS = 55,
    D3DRS_STENCILFUNC = 56,
    D3DRS_STENCILREF = 57,
    D3DRS_STENCILMASK = 58,
    D3DRS_STENCILWRITEMASK = 59,
    D3DRS_TEXTUREFACTOR = 60,
    D3DRS_WRAP0 = 128,
    D3DRS_WRAP1 = 129,
    D3DRS_WRAP2 = 130,
    D3DRS_WRAP3 = 131,
    D3DRS_WRAP4 = 132,
    D3DRS_WRAP5 = 133,
    D3DRS_WRAP6 = 134,
    D3DRS_WRAP7 = 135,
    D3DRS_CLIPPING = 136,
    D3DRS_LIGHTING = 137,
    D3DRS_AMBIENT = 139,
    D3DRS_FOGVERTEXMODE = 140,
    D3DRS_COLORVERTEX = 141,
    D3DRS_LOCALVIEWER = 142,
    D3DRS_NORMALIZENORMALS = 143,
    D3DRS_DIFFUSEMATERIALSOURCE = 145,
    D3DRS_SPECULARMATERIALSOURCE = 146,
    D3DRS_AMBIENTMATERIALSOURCE = 147,
    D3DRS_EMISSIVEMATERIALSOURCE = 148,
    D3DRS_VERTEXBLEND = 151,
    D3DRS_CLIPPLANEENABLE = 152,
    D3DRS_POINTSIZE = 154,
    D3DRS_POINTSIZE_MIN = 155,
    D3DRS_POINTSPRITEENABLE = 156,
    D3DRS_POINTSCALEENABLE = 157,
    D3DRS_POINTSCALE_A = 158,
    D3DRS_POINTSCALE_B = 159,
    D3DRS_POINTSCALE_C = 160,
    D3DRS_MULTISAMPLEANTIALIAS = 161,
    D3DRS_MULTISAMPLEMASK = 162,
    D3DRS_PATCHEDGESTYLE = 163,
    D3DRS_DEBUGMONITORTOKEN = 165,
    D3DRS_POINTSIZE_MAX = 166,
    D3DRS_INDEXEDVERTEXBLENDENABLE = 167,
    D3DRS_COLORWRITEENABLE = 168,
    D3DRS_TWEENFACTOR = 170,
    D3DRS_BLENDOP = 171,
    D3DRS_POSITIONDEGREE = 172,
    D3DRS_NORMALDEGREE = 173,
    D3DRS_SCISSORTESTENABLE = 174,
    D3DRS_SLOPESCALEDEPTHBIAS = 175,
    D3DRS_ANTIALIASEDLINEENABLE = 176,
    D3DRS_MINTESSELLATIONLEVEL = 178,
    D3DRS_MAXTESSELLATIONLEVEL = 179,
    D3DRS_ADAPTIVETESS_X = 180,
    D3DRS_ADAPTIVETESS_Y = 181,
    D3DRS_ADAPTIVETESS_Z = 182,
    D3DRS_ADAPTIVETESS_W = 183,
    D3DRS_ENABLEADAPTIVETESSELLATION = 184,
    D3DRS_TWOSIDEDSTENCILMODE = 185,
    D3DRS_CCW_STENCILFAIL = 186,
    D3DRS_CCW_STENCILZFAIL = 187,
    D3DRS_CCW_STENCILPASS = 188,
    D3DRS_CCW_STENCILFUNC = 189,
    D3DRS_COLORWRITEENABLE1 = 190,
    D3DRS_COLORWRITEENABLE2 = 191,
    D3DRS_COLORWRITEENABLE3 = 192,
    D3DRS_BLENDFACTOR = 193,
    D3DRS_SRGBWRITEENABLE = 194,
    D3DRS_DEPTHBIAS = 195,
    D3DRS_WRAP8 = 198,
    D3DRS_WRAP9 = 199,
    D3DRS_WRAP10 = 200,
    D3DRS_WRAP11 = 201,
    D3DRS_WRAP12 = 202,
    D3DRS_WRAP13 = 203,
    D3DRS_WRAP14 = 204,
    D3DRS_WRAP15 = 205,
    D3DRS_SEPARATEALPHABLENDENABLE = 206,
    D3DRS_SRCBLENDALPHA = 207,
    D3DRS_DESTBLENDALPHA = 208,
    D3DRS_BLENDOPALPHA = 209,
    D3DRS_FORCE_DWORD = 0x7fffffff,
} D3DRENDERSTATETYPE, *LPD3DRENDERSTATETYPE;

Constants

D3DRS_ZENABLE

Depth-buffering state as one member of the D3DZBUFFERTYPE enumerated type. Set this state to D3DZB_TRUE to enable z-buffering, D3DZB_USEW to enable w-buffering, or D3DZB_FALSE to disable depth buffering.

The default value for this render state is D3DZB_TRUE if a depth stencil was created along with the swap chain by setting the EnableAutoDepthStencil member of the D3DPRESENT_PARAMETERS structure to TRUE, and D3DZB_FALSE otherwise.

D3DRS_FILLMODE

One or more members of the D3DFILLMODE enumerated type. The default value is D3DFILL_SOLID.

D3DRS_SHADEMODE

One or more members of the D3DSHADEMODE enumerated type. The default value is D3DSHADE_GOURAUD.

D3DRS_ZWRITEENABLE

TRUE to enable the application to write to the depth buffer. The default value is TRUE. This member enables an application to prevent the system from updating the depth buffer with new depth values. If FALSE, depth comparisons are still made according to the render state D3DRS_ZFUNC, assuming that depth buffering is taking place, but depth values are not written to the buffer.

D3DRS_ALPHATESTENABLE

TRUE to enable per pixel alpha testing. If the test passes, the pixel is processed by the frame buffer. Otherwise, all frame-buffer processing is skipped for the pixel.

The test is done by comparing the incoming alpha value with the reference alpha value, using the comparison function provided by the D3DRS_ALPHAFUNC render state. The reference alpha value is determined by the value set for D3DRS_ALPHAREF. For more information, see Alpha Testing State (Direct3D 9).

The default value of this parameter is FALSE.

D3DRS_LASTPIXEL

The default value is TRUE, which enables drawing of the last pixel in a line. To prevent drawing of the last pixel, set this value to FALSE. For more information, see Outline and Fill State (Direct3D 9).

D3DRS_SRCBLEND

One member of the D3DBLEND enumerated type. The default value is D3DBLEND_ONE.

D3DRS_DESTBLEND

One member of the D3DBLEND enumerated type. The default value is D3DBLEND_ZERO.

D3DRS_CULLMODE

Specifies how back-facing triangles are culled, if at all. This can be set to one member of the D3DCULL enumerated type. The default value is D3DCULL_CCW.

D3DRS_ZFUNC

One member of the D3DCMPFUNC enumerated type. The default value is D3DCMP_LESSEQUAL. This member enables an application to accept or reject a pixel, based on its distance from the camera.

The depth value of the pixel is compared with the depth-buffer value. If the depth value of the pixel passes the comparison function, the pixel is written.

The depth value is written to the depth buffer only if the render state is TRUE.

Software rasterizers and many hardware accelerators work faster if the depth test fails, because there is no need to filter and modulate the texture if the pixel is not going to be rendered.

D3DRS_ALPHAREF

Value that specifies a reference alpha value against which pixels are tested when alpha testing is enabled. This is an 8-bit value placed in the low 8 bits of the DWORD render-state value. Values can range from 0x00000000 through 0x000000FF. The default value is 0.

D3DRS_ALPHAFUNC

One member of the D3DCMPFUNC enumerated type. The default value is D3DCMP_ALWAYS. This member enables an application to accept or reject a pixel, based on its alpha value.

D3DRS_DITHERENABLE

TRUE to enable dithering. The default value is FALSE.

D3DRS_ALPHABLENDENABLE

TRUE to enable alpha-blended transparency. The default value is FALSE.

The type of alpha blending is determined by the D3DRS_SRCBLEND and D3DRS_DESTBLEND render states.

D3DRS_FOGENABLE

TRUE to enable fog blending. The default value is FALSE. For more information about using fog blending, see Fog.

D3DRS_SPECULARENABLE

TRUE to enable specular highlights. The default value is FALSE.

Specular highlights are calculated as though every vertex in the object being lit is at the object's origin. This gives the expected results as long as the object is modeled around the origin and the distance from the light to the object is relatively large. In other cases, the results as undefined.

When this member is set to TRUE, the specular color is added to the base color after the texture cascade but before alpha blending.

D3DRS_FOGCOLOR

Value whose type is D3DCOLOR. The default value is 0. For more information about fog color, see Fog Color (Direct3D 9).

D3DRS_FOGTABLEMODE

The fog formula to be used for pixel fog. Set to one of the members of the D3DFOGMODE enumerated type. The default value is D3DFOG_NONE. For more information about pixel fog, see Pixel Fog (Direct3D 9).

D3DRS_FOGSTART

Depth at which pixel or vertex fog effects begin for linear fog mode. The default value is 0.0f. Depth is specified in world space for vertex fog and either device space [0.0, 1.0] or world space for pixel fog. For pixel fog, these values are in device space when the system uses z for fog calculations and world-world space when the system is using eye-relative fog (w-fog). For more information, see Fog Parameters (Direct3D 9) and Eye-Relative vs. Z-based Depth.

Values for the this render state are floating-point values. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

pDevice9->SetRenderState(D3DRS_FOGSTART,
                         *((DWORD*) (&fFogStart)));

D3DRS_FOGEND

Depth at which pixel or vertex fog effects end for linear fog mode. The default value is 1.0f. Depth is specified in world space for vertex fog and either device space [0.0, 1.0] or world space for pixel fog. For pixel fog, these values are in device space when the system uses z for fog calculations and in world space when the system is using eye-relative fog (w-fog). For more information, see Fog Parameters (Direct3D 9) and Eye-Relative vs. Z-based Depth.

Values for this render state are floating-point values. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

m_pDevice9->SetRenderState(D3DRS_FOGEND, *((DWORD*) (&fFogEnd)));

D3DRS_FOGDENSITY

Fog density for pixel or vertex fog used in the exponential fog modes (D3DFOG_EXP and D3DFOG_EXP2). Valid density values range from 0.0 through 1.0. The default value is 1.0. For more information, see Fog Parameters (Direct3D 9).

    m_pDevice9->SetRenderState(D3DRS_FOGDENSITY, *((DWORD*) (&fFogDensity)));

D3DRS_RANGEFOGENABLE

TRUE to enable range-based vertex fog. The default value is FALSE, in which case the system uses depth-based fog. In range-based fog, the distance of an object from the viewer is used to compute fog effects, not the depth of the object (that is, the z-coordinate) in the scene. In range-based fog, all fog methods work as usual, except that they use range instead of depth in the computations.

Range is the correct factor to use for fog computations, but depth is commonly used instead because range is time-consuming to compute and depth is generally already available. Using depth to calculate fog has the undesirable effect of having the fogginess of peripheral objects change as the viewer's eye moves - in this case, the depth changes and the range remains constant.

Because no hardware currently supports per-pixel range-based fog, range correction is offered only for vertex fog.

For more information, see Vertex Fog (Direct3D 9).

D3DRS_STENCILENABLE

TRUE to enable stenciling, or FALSE to disable stenciling. The default value is FALSE. For more information, see Stencil Buffer Techniques (Direct3D 9).

D3DRS_STENCILFAIL

Stencil operation to perform if the stencil test fails. Values are from the D3DSTENCILOP enumerated type. The default value is D3DSTENCILOP_KEEP.

D3DRS_STENCILZFAIL

Stencil operation to perform if the stencil test passes and the depth test (z-test) fails. Values are from the D3DSTENCILOP enumerated type. The default value is D3DSTENCILOP_KEEP.

D3DRS_STENCILPASS

Stencil operation to perform if both the stencil and the depth (z) tests pass. Values are from the D3DSTENCILOP enumerated type. The default value is D3DSTENCILOP_KEEP.

D3DRS_STENCILFUNC

Comparison function for the stencil test. Values are from the D3DCMPFUNC enumerated type. The default value is D3DCMP_ALWAYS.

The comparison function is used to compare the reference value to a stencil buffer entry. This comparison applies only to the bits in the reference value and stencil buffer entry that are set in the stencil mask (set by the D3DRS_STENCILMASK render state). If TRUE, the stencil test passes.

D3DRS_STENCILREF

An int reference value for the stencil test. The default value is 0.

D3DRS_STENCILMASK

Mask applied to the reference value and each stencil buffer entry to determine the significant bits for the stencil test. The default mask is 0xFFFFFFFF.

D3DRS_STENCILWRITEMASK

Write mask applied to values written into the stencil buffer. The default mask is 0xFFFFFFFF.

D3DRS_TEXTUREFACTOR

Color used for multiple-texture blending with the D3DTA_TFACTOR texture-blending argument or the D3DTOP_BLENDFACTORALPHA texture-blending operation. The associated value is a D3DCOLOR variable. The default value is opaque white (0xFFFFFFFF).

D3DRS_WRAP0

Texture-wrapping behavior for multiple sets of texture coordinates. Valid values for this render state can be any combination of the D3DWRAPCOORD_0 (or D3DWRAP_U), D3DWRAPCOORD_1 (or D3DWRAP_V), D3DWRAPCOORD_2 (or D3DWRAP_W), and D3DWRAPCOORD_3 flags. These cause the system to wrap in the direction of the first, second, third, and fourth dimensions, sometimes referred to as the s, t, r, and q directions, for a given texture. The default value for this render state is 0 (wrapping disabled in all directions).

D3DRS_WRAP1

See D3DRS_WRAP0.

D3DRS_WRAP2

See D3DRS_WRAP0.

D3DRS_WRAP3

See D3DRS_WRAP0.

D3DRS_WRAP4

See D3DRS_WRAP0.

D3DRS_WRAP5

See D3DRS_WRAP0.

D3DRS_WRAP6

See D3DRS_WRAP0.

D3DRS_WRAP7

See D3DRS_WRAP0.

D3DRS_CLIPPING

TRUE to enable primitive clipping by Direct3D, or FALSE to disable it. The default value is TRUE.

D3DRS_LIGHTING

TRUE to enable Direct3D lighting, or FALSE to disable it. The default value is TRUE. Only vertices that include a vertex normal are properly lit; vertices that do not contain a normal employ a dot product of 0 in all lighting calculations.

D3DRS_AMBIENT

Ambient light color. This value is of type D3DCOLOR. The default value is 0.

D3DRS_FOGVERTEXMODE

Fog formula to be used for vertex fog. Set to one member of the D3DFOGMODE enumerated type. The default value is D3DFOG_NONE.

D3DRS_COLORVERTEX

TRUE to enable per-vertex color or FALSE to disable it. The default value is TRUE. Enabling per-vertex color allows the system to include the color defined for individual vertices in its lighting calculations.

For more information, see the following render states:

D3DRS_DIFFUSEMATERIALSOURCE
D3DRS_SPECULARMATERIALSOURCE
D3DRS_AMBIENTMATERIALSOURCE
D3DRS_EMISSIVEMATERIALSOURCE

D3DRS_LOCALVIEWER

TRUE to enable camera-relative specular highlights, or FALSE to use orthogonal specular highlights. The default value is TRUE. Applications that use orthogonal projection should specify false.

D3DRS_NORMALIZENORMALS

TRUE to enable automatic normalization of vertex normals, or FALSE to disable it. The default value is FALSE. Enabling this feature causes the system to normalize the vertex normals for vertices after transforming them to camera space, which can be computationally time-consuming.

D3DRS_DIFFUSEMATERIALSOURCE

Diffuse color source for lighting calculations. Valid values are members of the D3DMATERIALCOLORSOURCE enumerated type. The default value is D3DMCS_COLOR1. The value for this render state is used only if the D3DRS_COLORVERTEX render state is set to TRUE.

D3DRS_SPECULARMATERIALSOURCE

Specular color source for lighting calculations. Valid values are members of the D3DMATERIALCOLORSOURCE enumerated type. The default value is D3DMCS_COLOR2.

D3DRS_AMBIENTMATERIALSOURCE

Ambient color source for lighting calculations. Valid values are members of the D3DMATERIALCOLORSOURCE enumerated type. The default value is D3DMCS_MATERIAL.

D3DRS_EMISSIVEMATERIALSOURCE

Emissive color source for lighting calculations. Valid values are members of the D3DMATERIALCOLORSOURCE enumerated type. The default value is D3DMCS_MATERIAL.

D3DRS_VERTEXBLEND

Number of matrices to use to perform geometry blending, if any. Valid values are members of the D3DVERTEXBLENDFLAGS enumerated type. The default value is D3DVBF_DISABLE.

D3DRS_CLIPPLANEENABLE

Enables or disables user-defined clipping planes. Valid values are any DWORD in which the status of each bit (set or not set) toggles the activation state of a corresponding user-defined clipping plane. The least significant bit (bit 0) controls the first clipping plane at index 0, and subsequent bits control the activation of clipping planes at higher indexes. If a bit is set, the system applies the appropriate clipping plane during scene rendering. The default value is 0.

The D3DCLIPPLANEn macros are defined to provide a convenient way to enable clipping planes.

D3DRS_POINTSIZE

A float value that specifies the size to use for point size computation in cases where point size is not specified for each vertex. This value is not used when the vertex contains point size. This value is in screen space units if D3DRS_POINTSCALEENABLE is FALSE; otherwise this value is in world space units. The default value is the value a driver returns. If a driver returns 0 or 1, the default value is 64, which allows software point size emulation. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

m_pDevice9->SetRenderState(D3DRS_POINTSIZE, *((DWORD*)&pointSize));

D3DRS_POINTSIZE_MIN

A float value that specifies the minimum size of point primitives. Point primitives are clamped to this size during rendering. Setting this to values smaller than 1.0 results in points dropping out when the point does not cover a pixel center and antialiasing is disabled or being rendered with reduced intensity when antialiasing is enabled. The default value is 1.0f. The range for this value is greater than or equal to 0.0f. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

m_pDevice9->SetRenderState(D3DRS_POINTSIZE_MIN, *((DWORD*)&pointSizeMin));

D3DRS_POINTSPRITEENABLE

bool value. When TRUE, texture coordinates of point primitives are set so that full textures are mapped on each point. When FALSE, the vertex texture coordinates are used for the entire point. The default value is FALSE. You can achieve DirectX 7 style single-pixel points by setting D3DRS_POINTSCALEENABLE to FALSE and D3DRS_POINTSIZE to 1.0, which are the default values.

D3DRS_POINTSCALEENABLE

bool value that controls computation of size for point primitives. When TRUE, the point size is interpreted as a camera space value and is scaled by the distance function and the frustum to viewport y-axis scaling to compute the final screen-space point size. When FALSE, the point size is interpreted as screen space and used directly. The default value is FALSE.

D3DRS_POINTSCALE_A

A float value that controls for distance-based size attenuation for point primitives. Active only when D3DRS_POINTSCALEENABLE is TRUE. The default value is 1.0f. The range for this value is greater than or equal to 0.0f. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

m_pDevice9->SetRenderState(D3DRS_POINTSCALE_A, *((DWORD*)&pointScaleA));

D3DRS_POINTSCALE_B

A float value that controls for distance-based size attenuation for point primitives. Active only when D3DRS_POINTSCALEENABLE is TRUE. The default value is 0.0f. The range for this value is greater than or equal to 0.0f. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

m_pDevice9->SetRenderState(D3DRS_POINTSCALE_B, *((DWORD*)&pointScaleB));

D3DRS_POINTSCALE_C

m_pDevice9->SetRenderState(D3DRS_POINTSCALE_C, *((DWORD*)&pointScaleC));

D3DRS_MULTISAMPLEANTIALIAS

bool value that determines how individual samples are computed when using a multisample render-target buffer. When set to TRUE, the multiple samples are computed so that full-scene antialiasing is performed by sampling at different sample positions for each multiple sample. When set to FALSE, the multiple samples are all written with the same sample value, sampled at the pixel center, which allows non-antialiased rendering to a multisample buffer. This render state has no effect when rendering to a single sample buffer. The default value is TRUE.

D3DRS_MULTISAMPLEMASK

Each bit in this mask, starting at the least significant bit (LSB), controls modification of one of the samples in a multisample render target. Thus, for an 8-sample render target, the low byte contains the eight write enables for each of the eight samples. This render state has no effect when rendering to a single sample buffer. The default value is 0xFFFFFFFF.

This render state enables use of a multisample buffer as an accumulation buffer, doing multipass rendering of geometry where each pass updates a subset of samples.

If there are n multisamples and k enabled samples, the resulting intensity of the rendered image should be k/n. Each component RGB of every pixel is factored by k/n.

D3DRS_PATCHEDGESTYLE

Sets whether patch edges will use float style tessellation. Possible values are defined by the D3DPATCHEDGESTYLE enumerated type. The default value is D3DPATCHEDGE_DISCRETE.

D3DRS_DEBUGMONITORTOKEN

Set only for debugging the monitor. Possible values are defined by the D3DDEBUGMONITORTOKENS enumerated type. Note that if D3DRS_DEBUGMONITORTOKEN is set, the call is treated as passing a token to the debug monitor. For example, if - after passing D3DDMT_ENABLE or D3DDMT_DISABLE to D3DRS_DEBUGMONITORTOKEN - other token values are passed in, the state (enabled or disabled) of the debug monitor will still persist.

This state is only useful for debug builds. The debug monitor defaults to D3DDMT_ENABLE.

D3DRS_POINTSIZE_MAX

A float value that specifies the maximum size to which point sprites will be clamped. The value must be less than or equal to the MaxPointSize member of D3DCAPS9 and greater than or equal to D3DRS_POINTSIZE_MIN. The default value is 64.0. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

m_pDevice9->SetRenderState(D3DRS_PONTSIZE_MAX, *((DWORD*)&pointSizeMax));

D3DRS_INDEXEDVERTEXBLENDENABLE

bool value that enables or disables indexed vertex blending. The default value is FALSE. When set to TRUE, indexed vertex blending is enabled. When set to FALSE, indexed vertex blending is disabled. If this render state is enabled, the user must pass matrix indices as a packed DWORDwith every vertex. When the render state is disabled and vertex blending is enabled through the D3DRS_VERTEXBLEND state, it is equivalent to having matrix indices 0, 1, 2, 3 in every vertex.

D3DRS_COLORWRITEENABLE

UINT value that enables a per-channel write for the render-target color buffer. A set bit results in the color channel being updated during 3D rendering. A clear bit results in the color channel being unaffected. This functionality is available if the D3DPMISCCAPS_COLORWRITEENABLE capabilities bit is set in the PrimitiveMiscCaps member of the D3DCAPS9 structure for the device. This render state does not affect the clear operation. The default value is 0x0000000F.

Valid values for this render state can be any combination of the D3DCOLORWRITEENABLE_ALPHA, D3DCOLORWRITEENABLE_BLUE, D3DCOLORWRITEENABLE_GREEN, or D3DCOLORWRITEENABLE_RED flags.

D3DRS_TWEENFACTOR

A float value that controls the tween factor. The default value is 0.0f. Because the IDirect3DDevice9::SetRenderState method accepts DWORD values, your application must cast a variable that contains the value, as shown in the following code example.

m_pDevice9->SetRenderState(D3DRS_TWEENFACTOR, *((DWORD*)&TweenFactor));

D3DRS_BLENDOP

Value used to select the arithmetic operation applied when the alpha blending render state, D3DRS_ALPHABLENDENABLE, is set to TRUE. Valid values are defined by the D3DBLENDOP enumerated type. The default value is D3DBLENDOP_ADD.

If the D3DPMISCCAPS_BLENDOP device capability is not supported, then D3DBLENDOP_ADD is performed.

D3DRS_POSITIONDEGREE

N-patch position interpolation degree. The values can be D3DDEGREE_CUBIC (default) or D3DDEGREE_LINEAR. For more information, see D3DDEGREETYPE.

D3DRS_NORMALDEGREE

N-patch normal interpolation degree. The values can be D3DDEGREE_LINEAR (default) or D3DDEGREE_QUADRATIC. For more information, see D3DDEGREETYPE.

D3DRS_SCISSORTESTENABLE

TRUE to enable scissor testing and FALSE to disable it. The default value is FALSE.

D3DRS_SLOPESCALEDEPTHBIAS

Used to determine how much bias can be applied to co-planar primitives to reduce z-fighting. The default value is 0.

bias = (max * D3DRS_SLOPESCALEDEPTHBIAS) + D3DRS_DEPTHBIAS.

where max is the maximum depth slope of the triangle being rendered.

D3DRS_ANTIALIASEDLINEENABLE

TRUE to enable line antialiasing, FALSE to disable line antialiasing. The default value is FALSE.

When rendering to a multisample render target, D3DRS_ANTIALIASEDLINEENABLE is ignored and all lines are rendered aliased. Use ID3DXLine for antialiased line rendering in a multisample render target.

D3DRS_MINTESSELLATIONLEVEL

Minimum tessellation level. The default value is 1.0f. See Tessellation (Direct3D 9).

D3DRS_MAXTESSELLATIONLEVEL

Maximum tessellation level. The default value is 1.0f. See Tessellation (Direct3D 9).

D3DRS_ADAPTIVETESS_X

Amount to adaptively tessellate, in the x direction. Default value is 0.0f. See Adaptive Tessellation.

D3DRS_ADAPTIVETESS_Y

Amount to adaptively tessellate, in the y direction. Default value is 0.0f. See Adaptive_Tessellation.

D3DRS_ADAPTIVETESS_Z

Amount to adaptively tessellate, in the z direction. Default value is 1.0f. See Adaptive_Tessellation.

D3DRS_ADAPTIVETESS_W

Amount to adaptively tessellate, in the w direction. Default value is 0.0f. See Adaptive_Tessellation.

D3DRS_ENABLEADAPTIVETESSELLATION

TRUE to enable adaptive tessellation, FALSE to disable it. The default value is FALSE. See Adaptive_Tessellation.

D3DRS_TWOSIDEDSTENCILMODE

TRUE enables two-sided stenciling, FALSE disables it. The default value is FALSE. The application should set D3DRS_CULLMODE to D3DCULL_NONE to enable two-sided stencil mode. If the triangle winding order is clockwise, the D3DRS_STENCIL* operations will be used. If the winding order is counterclockwise, the D3DRS_CCW_STENCIL* operations will be used.

To see if two-sided stencil is supported, check the StencilCaps member of D3DCAPS9 for D3DSTENCILCAPS_TWOSIDED. See also D3DSTENCILCAPS.

D3DRS_CCW_STENCILFAIL

Stencil operation to perform if CCW stencil test fails. Values are from the D3DSTENCILOP enumerated type. The default value is D3DSTENCILOP_KEEP.

D3DRS_CCW_STENCILZFAIL

Stencil operation to perform if CCW stencil test passes and z-test fails. Values are from the D3DSTENCILOP enumerated type. The default value is D3DSTENCILOP_KEEP.

D3DRS_CCW_STENCILPASS

Stencil operation to perform if both CCW stencil and z-tests pass. Values are from the D3DSTENCILOP enumerated type. The default value is D3DSTENCILOP_KEEP.

D3DRS_CCW_STENCILFUNC

The comparison function. CCW stencil test passes if ((ref & mask) stencil function (stencil & mask)) is true. Values are from the D3DCMPFUNC enumerated type. The default value is D3DCMP_ALWAYS.

D3DRS_COLORWRITEENABLE1

Additional ColorWriteEnable values for the devices. See D3DRS_COLORWRITEENABLE. This functionality is available if the D3DPMISCCAPS_INDEPENDENTWRITEMASKS capabilities bit is set in the PrimitiveMiscCaps member of the D3DCAPS9 structure for the device. The default value is 0x0000000f.

D3DRS_COLORWRITEENABLE2

D3DRS_COLORWRITEENABLE3

D3DRS_BLENDFACTOR

D3DCOLOR used for a constant blend-factor during alpha blending. This functionality is available if the D3DPBLENDCAPS_BLENDFACTOR capabilities bit is set in the SrcBlendCaps member of D3DCAPS9 or the DestBlendCaps member of D3DCAPS9. See D3DRENDERSTATETYPE. The default value is 0xffffffff.

D3DRS_SRGBWRITEENABLE

Enable render-target writes to be gamma corrected to sRGB. The format must expose D3DUSAGE_SRGBWRITE. The default value is 0.

D3DRS_DEPTHBIAS

A floating-point value that is used for comparison of depth values. See Depth Bias (Direct3D 9). The default value is 0.

D3DRS_WRAP8

See D3DRS_WRAP0.

D3DRS_WRAP9

See D3DRS_WRAP0.

D3DRS_WRAP10

See D3DRS_WRAP0.

D3DRS_WRAP11

See D3DRS_WRAP0.

D3DRS_WRAP12

See D3DRS_WRAP0.

D3DRS_WRAP13

See D3DRS_WRAP0.

D3DRS_WRAP14

See D3DRS_WRAP0.

D3DRS_WRAP15

See D3DRS_WRAP0.

D3DRS_SEPARATEALPHABLENDENABLE

TRUE enables the separate blend mode for the alpha channel. The default value is FALSE.

When set to false, the render-target blending factors and operations applied to alpha are forced to be the same as those defined for color. This mode is effectively hardwired to false on implementations that don't set the cap D3DPMISCCAPS_SEPARATEALPHABLEND. See D3DPMISCCAPS.

The type of separate alpha blending is determined by the D3DRS_SRCBLENDALPHA and D3DRS_DESTBLENDALPHA render states.

D3DRS_SRCBLENDALPHA

One member of the D3DBLEND enumerated type. This value is ignored unless D3DRS_SEPARATEALPHABLENDENABLE is true. The default value is D3DBLEND_ONE.

D3DRS_DESTBLENDALPHA

One member of the D3DBLEND enumerated type. This value is ignored unless D3DRS_SEPARATEALPHABLENDENABLE is true. The default value is D3DBLEND_ZERO.

D3DRS_BLENDOPALPHA

Value used to select the arithmetic operation applied to separate alpha blending when the render state, D3DRS_SEPARATEALPHABLENDENABLE, is set to TRUE.

Valid values are defined by the D3DBLENDOP enumerated type. The default value is D3DBLENDOP_ADD.

If the D3DPMISCCAPS_BLENDOP device capability is not supported, then D3DBLENDOP_ADD is performed. See D3DPMISCCAPS.

D3DRS_FORCE_DWORD

Forces this enumeration to compile to 32 bits in size. Without this value, some compilers would allow this enumeration to compile to a size other than 32 bits. This value is not used.

Remarks

Render States
ps_1_1 to ps_1_3	4 texture samplers

Direct3D defines the D3DRENDERSTATE_WRAPBIAS constant as a convenience for applications to enable or disable texture wrapping, based on the zero-based integer of a texture coordinate set (rather than explicitly using one of the D3DRS_WRAP n state values). Add the D3DRENDERSTATE_WRAPBIAS value to the zero-based index of a texture coordinate set to calculate the D3DRS_WRAP n value that corresponds to that index, as shown in the following example.

// Enable U/V wrapping for textures that use the texture
// coordinate set at the index within the dwIndex variable

HRESULT hr = pd3dDevice->SetRenderState(dwIndex + D3DRENDERSTATE_WRAPBIAS,  D3DWRAPCOORD_0 | D3DWRAPCOORD_1);

// If dwIndex is 3, the value that results from
// the addition equals D3DRS_WRAP3 (131)

这个函数的功能太复杂了，有时间可以慢慢研究。

顶点索引缓冲区

通常，为了渲染显示三维物体的各个微小三角形面，必须重复将顶点写入顶点缓冲区中。为了解决重复写入的顶点将会占用大量内存的问题，先创建一个顶点缓冲区，将不重复的顶点数据写入，然后创建一个顶点索引缓冲区，存放三维物体各微分三角形面的顶点索引信息。这种方法同样给出了完整的三维物体的三角形面的组成信息。

顶点索引缓冲区可用Direct3D设备的CreateIndexBuffer函数来创建：

Creates an index buffer.

HRESULT CreateIndexBuffer(
  UINT Length,
  DWORD Usage,
  D3DFORMAT Format,
  D3DPOOL Pool,
  IDirect3DIndexBuffer9** ppIndexBuffer,
  HANDLE* pSharedHandle
);

Parameters

Length

[in] Size of the index buffer, in bytes.

Usage

[in] Usage can be 0, which indicates no usage value. However, if usage is desired, use a combination of one or more D3DUSAGE constants. It is good practice to match the usage parameter in CreateIndexBuffer with the behavior flags in IDirect3D9::CreateDevice. For more information, see Remarks.

Format

[in] Member of the D3DFORMAT enumerated type, describing the format of the index buffer. For more information, see Remarks. The valid settings are the following:

D3DFMT_INDEX16: Indices are 16 bits each.
D3DFMT_INDEX32: Indices are 32 bits each.

Pool

[in] Member of the D3DPOOL enumerated type, describing a valid memory class into which to place the resource.

ppIndexBuffer

[out, retval] Address of a pointer to an IDirect3DIndexBuffer9 interface, representing the created index buffer resource.

pSharedHandle

[in] Reserved. Set this parameter to NULL.

Return Values

If the method succeeds, the return value is D3D_OK. If the method fails, the return value can be one of the following: D3DERR_INVALIDCALL, D3DERR_OUTOFVIDEOMEMORY, D3DXERR_INVALIDDATA, E_OUTOFMEMORY.

Remarks

Index buffers are memory resources used to hold indices, they are similar to both surfaces and vertex buffers. The use of index buffers enables Direct3D to avoid unnecessary data copying and to place the buffer in the optimal memory type for the expected usage.

To use index buffers, create an index buffer, lock it, fill it with indices, unlock it, pass it to IDirect3DDevice9::SetIndices, set up the vertices, set up the vertex shader, and call IDirect3DDevice9::DrawIndexedPrimitive for rendering.

The MaxVertexIndex member of the D3DCAPS9 structure indicates the types of index buffers that are valid for rendering.

顶点缓冲区创建后，还需要将各个三角形面的顶点索引号写入索引缓冲区。同样地，必须用IDirect3DIndexBuffer9接口提供的Lock和 Unlock函数进行锁定和解锁。

最后，为了将8个顶点（1个立方体有8个顶点）和三角形面的顶点索引号提供给渲染管道流水线作为初始的加工数据，还需要调用Direct3D设备的 SetStreamSource函数和SetIndices函数，将顶点缓冲区和顶点索引缓冲区的数据倒入。

来看看SetIndices的使用信息：

Sets index data.

HRESULT SetIndices(
  IDirect3DIndexBuffer9 * pIndexData
);

Parameters

pIndexData: [in] Pointer to an IDirect3DIndexBuffer9 interface, representing the index data to be set.

Return Values

If the method succeeds, the return value is D3D_OK. If the method fails, the return value can be: D3DERR_INVALIDCALL.

Remarks

When an application no longer holds a references to this interface, the interface will automatically be freed.

The IDirect3DDevice9::SetIndices method sets the current index array to an index buffer. The single set of indices is used to index all streams.

在世界坐标系中放置物体

通常三维场景都有多个三维物体组成，各个三维物体一般都在自身的局部坐标系中给出顶点坐标，因此必须考虑将场景中各个物体移入到一个统一的世界坐标系中，以揭示场景中各个三维物体的空间位置，从而计算出这些三维场景物体在世界坐标系中的坐标。

这种局部坐标到世界坐标的平移变换计算，同样可由渲染管道流水线来自动执行。为此需要取得平移变换的矩阵，然后利用Direct3D设备的 SetTransform函数设置管道流水线的世界变换矩阵。这样当物体顶点的局部坐标和索引值倒入渲染管道流水线并开始执行管道流水线的渲染过程后，就会计算三维物体各个顶点的世界坐标供下一步的剪裁投影过程使用。

来看看SetTransform函数的使用信息：

Sets a single device transformation-related state.

HRESULT SetTransform(
  D3DTRANSFORMSTATETYPE State,
  CONST D3DMATRIX * pMatrix
);

Parameters

State: [in] Device-state variable that is being modified. This parameter can be any member of the D3DTRANSFORMSTATETYPE enumerated type, or the D3DTS_WORLDMATRIX macro.
pMatrix: [in] Pointer to a D3DMATRIX structure that modifies the current transformation.

Return Values

If the method succeeds, the return value is D3D_OK. D3DERR_INVALIDCALL is returned if one of the arguments is invalid.

来看看D3DTRANSFORMSTATETYPE的具体信息：

Defines constants that describe transformation state values.

typedef enum D3DTRANSFORMSTATETYPE
{
    D3DTS_VIEW = 2,
    D3DTS_PROJECTION = 3,
    D3DTS_TEXTURE0 = 16,
    D3DTS_TEXTURE1 = 17,
    D3DTS_TEXTURE2 = 18,
    D3DTS_TEXTURE3 = 19,
    D3DTS_TEXTURE4 = 20,
    D3DTS_TEXTURE5 = 21,
    D3DTS_TEXTURE6 = 22,
    D3DTS_TEXTURE7 = 23,
    D3DTS_FORCE_DWORD = 0x7fffffff,
} D3DTRANSFORMSTATETYPE, *LPD3DTRANSFORMSTATETYPE;

Constants

D3DTS_VIEW: Identifies the transformation matrix being set as the view transformation matrix. The default value is NULL (the identity matrix).
D3DTS_PROJECTION: Identifies the transformation matrix being set as the projection transformation matrix. The default value is NULL (the identity matrix).
D3DTS_TEXTURE0: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_TEXTURE1: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_TEXTURE2: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_TEXTURE3: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_TEXTURE4: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_TEXTURE5: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_TEXTURE6: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_TEXTURE7: Identifies the transformation matrix being set for the specified texture stage.
D3DTS_FORCE_DWORD: Forces this enumeration to compile to 32 bits in size. Without this value, some compilers would allow this enumeration to compile to a size other than 32 bits. This value is not used.

Remarks

The transform states in the range 256 through 511 are reserved to store up to 256 world matrices that can be indexed using the D3DTS_WORLDMATRIX and D3DTS_WORLD macros.

Macros
D3DTS_WORLD	Equivalent to D3DTS_WORLDMATRIX(0).
D3DTS_WORLDMATRIX (index)	Identifies the transform matrix to set for the world matrix at index. Multiple world matrices are used only for vertex blending. Otherwise only D3DTS_WORLD is used.

来看看宏D3DTS_WORLD的定义：

Identifies the transformation matrix being set as the world transformation matrix.

Syntax

#define D3DTS_WORLD D3DTS_WORLDMATRIX(0)

Remarks

This macro is provided to facilitate porting existing applications to Microsoft DirectX 9.0

以及宏D3DTS_WORLDMATRIX的定义：

Maps indices in the range 0 through 255 to the corresponding transform states.

#define D3DTS_WORLDMATRIX(index) (D3DTRANSFORMSTATETYPE)(index + 256)

Parameters

index: An index value in the range 0 through 255.

Remarks

Transform states in the range 256 through 511 are reserved to store up to 256 matrices that can be indexed using 8-bit indices.

架设摄影机进行取景和投影

取得三维场景的各个顶点的世界坐标系后，需要架设一个摄影机，并以摄影机的位置作为原点建立摄影坐标系，使摄影坐标系的z轴方向指向摄影机的视线方向，以简化视截体各侧面的方程式，方便随后进行的裁剪投影变换。接着还需要进行取景，确定进行裁剪投影的视截体棱台区域。这个视截体棱台可由远近平面的位置和视域的张角来限定。当取景完毕，就可以实行三维场景的裁剪投影处理，从而实现三维场景到二维图形的转换。

以上的顶点世界坐标到摄影空间坐标的转换计算，可由渲染管道流水线来执行。为此需要先取得摄影变换的矩阵，然后再将变换矩阵设置给渲染管道流水线。这样渲染管道流水线执行到摄影变换流程时，就可以根据这个变换矩阵计算出顶点的摄影坐标。

将视截体范围之外的物体部分剪裁掉，并根据远小近大的原则进行剪裁投影变换，同样可由渲染管道流水线来执行。为此，需要将投影变换的矩阵设置给渲染管道流水线，从而使渲染管道流水线执行到剪裁投影这一流程时，可根据投影变换矩阵进行相关的剪裁投影处理，最终输出顶点的二维投影坐标和远近信息。

屏幕视口的设置

当三维场景的二维投影数据生成以后，就可以将图形数据输出到计算机屏幕进行光栅化显示。默认情形下，以整个应用程序的窗口作为输出区域，这个输出区域也成为视口，可利用IDirect3DDevice9接口提供的SetViewport函数来重新设置视口在应用程序窗口中的位置和大小。

来看看SetViewport函数的具体使用信息：

Sets the viewport parameters for the device.

HRESULT SetViewport(
  CONST D3DVIEWPORT9 * pViewport
);

Parameters

pViewport: [in] Pointer to a D3DVIEWPORT9 structure, specifying the viewport parameters to set.

Return Values

If the method succeeds, the return value is D3D_OK. If the method fails, it will return D3DERR_INVALIDCALL. This will happen if pViewport is invalid, or if pViewport describes a region that cannot exist within the render target surface.

Remarks

Direct3D sets the following default values for the viewport.

D3DVIEWPORT9 vp;
vp.X      = 0;
vp.Y      = 0;
vp.Width  = RenderTarget.Width;
vp.Height = RenderTarget.Height;
vp.MinZ   = 0.0f;
vp.MaxZ   = 1.0f;

IDirect3DDevice9::SetViewport can be used to draw on part of the screen. Make sure to call it before any geometry is drawn so the viewport settings will take effect.

To draw multiple views within a scene, repeat the IDirect3DDevice9::SetViewport and draw geometry sequence for each view.

来看看D3DVIEWPORT9的具体信息：

Defines the window dimensions of a render-target surface onto which a 3D volume projects.

typedef struct D3DVIEWPORT9 {
    DWORD X;
    DWORD Y;
    DWORD Width;
    DWORD Height;
    float MinZ;
    float MaxZ;
} D3DVIEWPORT9, *LPD3DVIEWPORT9;

Members

X: Pixel coordinate of the upper-left corner of the viewport on the render-target surface. Unless you want to render to a subset of the surface, this member can be set to 0.
Y: Pixel coordinate of the upper-left corner of the viewport on the render-target surface. Unless you want to render to a subset of the surface, this member can be set to 0.
Width: Width dimension of the clip volume, in pixels. Unless you are rendering only to a subset of the surface, this member should be set to the width dimension of the render-target surface.
Height: Height dimension of the clip volume, in pixels. Unless you are rendering only to a subset of the surface, this member should be set to the height dimension of the render-target surface.
MinZ: Together with MaxZ, value describing the range of depth values into which a scene is to be rendered, the minimum and maximum values of the clip volume. Most applications set this value to 0.0. Clipping is performed after applying the projection matrix.
MaxZ: Together with MinZ, value describing the range of depth values into which a scene is to be rendered, the minimum and maximum values of the clip volume. Most applications set this value to 1.0. Clipping is performed after applying the projection matrix.

Remarks

The X, Y, Width, and Height members describe the position and dimensions of the viewport on the render-target surface. Usually, applications render to the entire target surface; when rendering on a 640 x 480 surface, these members should be 0, 0, 640, and 480, respectively. The MinZ and MaxZ are typically set to 0.0 and 1.0 but can be set to other values to achieve specific effects. For example, you might set them both to 0.0 to force the system to render objects to the foreground of a scene, or both to 1.0 to force the objects into the background.

When the viewport parameters for a device change (because of a call to the IDirect3DDevice9::SetViewport method), the driver builds a new transformation matrix.

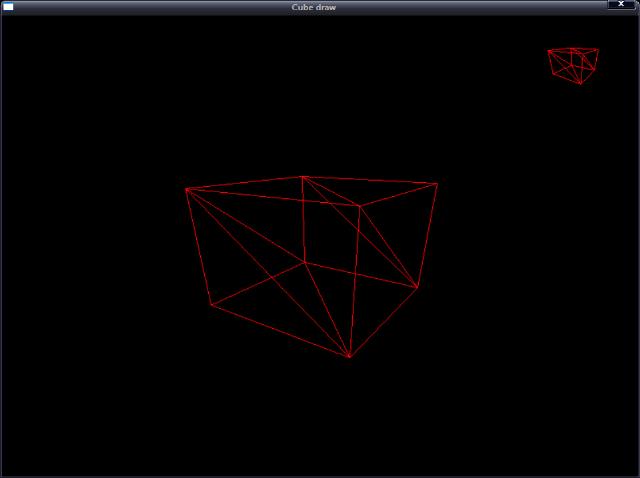

好了，这些该死的API使用信息介绍可以结束了，来看看怎么绘制一个基本的立体面。

需要在工程中设置链接d3dx9.lib d3d9.lib dxguid.lib dinput8.lib。
由于文件中用到了GE_APP 和GE_INPUT这两个类，它们的具体使用说明请参阅主窗口和DirectInput的封装。

若发现代码中存在错误，敬请指出。

源码下载

来看看cube.h的定义：

/*************************************************************************************
[Include File]

PURPOSE:
    Define for drawing cube.
*************************************************************************************/

#ifndef CUBE_H
#define CUBE_H

struct CUSTOM_VERTEX
{
    float x, y, z;
    D3DCOLOR color;
};

#define CUSTOM_VERTEX_FVF (D3DFVF_XYZ | D3DFVF_DIFFUSE)

class CUBE
{
private:
    IDirect3D9* _d3d;
    IDirect3DDevice9* _d3d_device;
    IDirect3DVertexBuffer9* _vertex_buffer;
    IDirect3DIndexBuffer9* _index_buffer;

public:
    float m_cur_x, m_cur_y, m_cur_z;

public:
    CUBE()  { m_cur_x = m_cur_y = m_cur_z = 0; }
    ~CUBE() { Release_Direct3D(); }

    bool Create_D3D_Device(HWND hwnd, bool full_screen = true);
    bool Init_Vertex_Buffer();
    void Set_World_Position(float x, float y, float z);
    void Set_Camera();
    void Render();
    void Release_Direct3D();
};

#endif

再来看看cube.cpp的定义：

/*************************************************************************************
[Implement File]

PURPOSE:
    Define for drawing cube.
*************************************************************************************/

#include "GE_COMMON.h"
#include "cube.h"

#define WINDOW_WIDTH    800
#define WINDOW_HEIGHT   600

//------------------------------------------------------------------------------------
// Create direct3D interface and direct3D device.
//------------------------------------------------------------------------------------
bool CUBE::Create_D3D_Device(HWND hwnd, bool full_screen)
{
    // Create a IDirect3D9 object and returns an interace to it.
    _d3d = Direct3DCreate9(D3D_SDK_VERSION);
    if(_d3d == NULL)
        return false;

    // retrieve adapter capability
    D3DCAPS9 d3d_caps;
    _d3d->GetDeviceCaps(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, &d3d_caps);

    bool hardware_process_enable = (d3d_caps.DevCaps & D3DDEVCAPS_HWTRANSFORMANDLIGHT ? true : false);

    // Retrieves the current display mode of the adapter.
    D3DDISPLAYMODE display_mode;
    if(FAILED(_d3d->GetAdapterDisplayMode(D3DADAPTER_DEFAULT, &display_mode)))
        return false;

    // set present parameter for direct3D device
    D3DPRESENT_PARAMETERS present_param = {0};

    present_param.BackBufferWidth      = WINDOW_WIDTH;
    present_param.BackBufferHeight     = WINDOW_HEIGHT;
    present_param.BackBufferFormat     = display_mode.Format;
    present_param.BackBufferCount      = 1;
    present_param.hDeviceWindow        = hwnd;
    present_param.Windowed             = !full_screen;
    present_param.SwapEffect           = D3DSWAPEFFECT_FLIP;
    present_param.PresentationInterval = D3DPRESENT_INTERVAL_DEFAULT;

    // Creates a device to represent the display adapter.
    DWORD behavior_flags;

    behavior_flags = hardware_process_enable ?
D3DCREATE_HARDWARE_VERTEXPROCESSING : D3DCREATE_SOFTWARE_VERTEXPROCESSING;

    if(FAILED(_d3d->CreateDevice(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, hwnd, behavior_flags,
                                 &present_param, &_d3d_device)))
    {
        return false;
    }

    // create successfully
    return true;
}

//------------------------------------------------------------------------------------
// Initialize vertex buffer and index buffer.
//------------------------------------------------------------------------------------
bool CUBE::Init_Vertex_Buffer()
{
    CUSTOM_VERTEX custom_vertex[] = {
        {-1.0,  1.0, -1.0,  D3DCOLOR_XRGB(255, 0, 0)},      // vertex 0
        {1.0,   1.0, -1.0,  D3DCOLOR_XRGB(255, 0, 0)},      // vertex 1
        {1.0,  -1.0, -1.0,  D3DCOLOR_XRGB(255, 0, 0)},      // vertex 2
        {-1.0, -1.0, -1.0,  D3DCOLOR_XRGB(255, 0, 0)},      // vertex 3
        {-1.0,  1.0,  1.0,  D3DCOLOR_XRGB(255, 0, 0)},      // vertex 4
        {1.0,   1.0,  1.0,  D3DCOLOR_XRGB(255, 0, 0)},      // vertex 5
        {1.0,  -1.0,  1.0,  D3DCOLOR_XRGB(255, 0, 0)},      // vertex 6
        {-1.0, -1.0,  1.0,  D3DCOLOR_XRGB(255, 0, 0)}       // vertex 7
    };

    BYTE* vertex_data;

    // create vertex buffer
    if(FAILED(_d3d_device->CreateVertexBuffer(8 * sizeof(CUSTOM_VERTEX), 0, CUSTOM_VERTEX_FVF,
        D3DPOOL_MANAGED, &_vertex_buffer, NULL)))
    {
        return false;
    }

    // get vertex buffer's pointer
    if(FAILED(_vertex_buffer->Lock(0, 0, (void**) &vertex_data, 0)))
        return false;

    // copy vertex data into vertex buffer
    memcpy(vertex_data, custom_vertex, sizeof(custom_vertex));

    // unlock vertex buffer
    _vertex_buffer->Unlock();

    // create vertex index buffer
    if(FAILED(_d3d_device->CreateIndexBuffer(36 * sizeof(WORD), 0, D3DFMT_INDEX16, D3DPOOL_MANAGED,
                                             &_index_buffer, NULL)))
    {
        return false;
    }

    // Locks a range of index data and obtains a pointer to the index buffer memory
    WORD* index_data;
    if(FAILED(_index_buffer->Lock(0, 0, (void**) &index_data, 0)))
        return false;

    // bottom 2 triangle
    index_data[0]=0;  index_data[1]=1;  index_data[2]=2;
    index_data[3]=0;  index_data[4]=2;  index_data[5]=3;
    // top 2 triangle
    index_data[6]=4;   index_data[7]=5;   index_data[8]=6;
    index_data[9]=4;   index_data[10]=6;  index_data[11]=7;
    // left 2 triangle
    index_data[12]=7;  index_data[13]=4;  index_data[14]=0;
    index_data[15]=0;  index_data[16]=7;  index_data[17]=3;
    // right 2 triangle
    index_data[18]=1;  index_data[19]=5;  index_data[20]=6;
    index_data[21]=1;  index_data[22]=6;  index_data[23]=2;
    // front 2 triangle
    index_data[30]=7;  index_data[31]=6;  index_data[32]=2;
    index_data[33]=7;  index_data[34]=3;  index_data[35]=2;
    // back 2 triangle
    index_data[24]=4;  index_data[25]=1;  index_data[26]=5;
    index_data[27]=4;  index_data[28]=1;  index_data[29]=0;

    // unlock index buffer
    _index_buffer->Unlock();

    return true;
}

//------------------------------------------------------------------------------------
// Set world position for object with specified world origin coordinate.
//------------------------------------------------------------------------------------
void CUBE::Set_World_Position(float x, float y, float z)
{
    D3DXMATRIX world_matrix;

    // Builds a matrix using the specified offsets, object is placed at(x, y, z) with world coordinate.
    D3DXMatrixTranslation(&world_matrix, x, y, z);

    // Sets d3d device world transformation state.
    _d3d_device->SetTransform(D3DTS_WORLD, &world_matrix);
}

//------------------------------------------------------------------------------------
// Set camera position.
//------------------------------------------------------------------------------------
void CUBE::Set_Camera()
{
    D3DXVECTOR3 eye(2.0, 1.5, -3.0);
    D3DXVECTOR3 at(0.0, 0.0, 0.0);
    D3DXVECTOR3 up(0.0, 1.0, 0.0);

    D3DXMATRIX view_matrix;

    // Builds a left-handed, look-at matrix.
    D3DXMatrixLookAtLH(&view_matrix, &eye, &at, &up);

    // Sets d3d device view transformation state.
    _d3d_device->SetTransform(D3DTS_VIEW, &view_matrix);

    D3DXMATRIX proj_matrix;

    // Builds a left-handed perspective projection matrix based on a field of view.
    D3DXMatrixPerspectiveFovLH(&proj_matrix, D3DX_PI/2, 800/600, 1.0, 1000.0);

    // Sets d3d device projection transformation state.
    _d3d_device->SetTransform(D3DTS_PROJECTION, &proj_matrix);
}

//------------------------------------------------------------------------------------
// Render cube.
//------------------------------------------------------------------------------------
void CUBE::Render()
{
    if(_d3d_device == NULL)
        return;

    // clear render surface with color black
    _d3d_device->Clear(0, NULL, D3DCLEAR_TARGET, D3DCOLOR_XRGB(0, 0, 0), 1.0, 0);

    // begin scene
    _d3d_device->BeginScene();

    // fill object with wireframe
    _d3d_device->SetRenderState(D3DRS_FILLMODE, D3DFILL_WIREFRAME);
    // disable lighting
    _d3d_device->SetRenderState(D3DRS_LIGHTING, false);
    // disable culling backface
    _d3d_device->SetRenderState(D3DRS_CULLMODE, D3DCULL_NONE);

    // Binds a vertex buffer to a device data stream.
    _d3d_device->SetStreamSource(0, _vertex_buffer, 0, sizeof(CUSTOM_VERTEX));
    // sets index data
    _d3d_device->SetIndices(_index_buffer);
    // Sets the current vertex stream declaration.
    _d3d_device->SetFVF(CUSTOM_VERTEX_FVF);

    // set viewport now
    D3DVIEWPORT9 full_viewport;

    // Retrieves the viewport parameters currently set for the device.
    _d3d_device->GetViewport(&full_viewport);

    D3DVIEWPORT9 top_right_viewport;

    top_right_viewport.Width  = full_viewport.Width / 5;
    top_right_viewport.Height = full_viewport.Height / 5;
    top_right_viewport.X      = full_viewport.Width - top_right_viewport.Width;
    top_right_viewport.Y      = 0;
    top_right_viewport.MinZ   = 0;
    top_right_viewport.MaxZ   = 1;

    // Sets the viewport parameters for the device.
    _d3d_device->SetViewport(&top_right_viewport);
    // Based on indexing, renders cube into an array of vertices.
    _d3d_device->DrawIndexedPrimitive(D3DPT_TRIANGLELIST, 0, 0, 8, 0, 12);

    // Sets the viewport parameters for the device.
    _d3d_device->SetViewport(&full_viewport);
    // Based on indexing, renders cube into an array of vertices.
    _d3d_device->DrawIndexedPrimitive(D3DPT_TRIANGLELIST, 0, 0, 8, 0, 12);

    // end scene
    _d3d_device->EndScene();

    // Presents the contents of the next buffer in the sequence of back buffers owned by the device.
    _d3d_device->Present(NULL, NULL, NULL, NULL);
}

//------------------------------------------------------------------------------------
// Release all resource allocated for Direct3D.
//------------------------------------------------------------------------------------
void CUBE::Release_Direct3D()
{
    Safe_Release(_index_buffer);
    Safe_Release(_vertex_buffer);
    Safe_Release(_d3d_device);
    Safe_Release(_d3d);
}

注释已经很详尽了，所以就不对代码进行分析了，下面来编写测试程序main.cpp：

*********************************************************************************
[Implement File]

PURPOSE:
    Test for triangle cube.
*************************************************************************************/

#define DIRECTINPUT_VERSION 0x0800

#include "GE_APP.h"
#include "GE_INPUT.h"
#include "cube.h"

#pragma warning(disable : 4305 4996)

int WINAPI WinMain(HINSTANCE instance, HINSTANCE, LPSTR cmd_line, int cmd_show)
{
    GE_APP ge_app;
    GE_INPUT ge_input;
    CUBE cube;

    MSG msg = {0};

    // create window
    if(! ge_app.Create_Window("Cube draw", instance, cmd_show))
        return false;

    HWND hwnd = ge_app.Get_Window_Handle();

    // create directinput
    ge_input.Create_Input(instance, hwnd);

    SetWindowPos(hwnd, 0, 0,0,0,0, SWP_NOSIZE);
    SetCursorPos(0, 0);

    // Create direct3D interface and direct3D device.
    if(! cube.Create_D3D_Device(hwnd, false))
        return false;

    // Initialize vertex buffer with curstom vertex structure.
    if(! cube.Init_Vertex_Buffer())
        return false;

    bool camera_reset = true;   // flag indicate whether reset camera position
    bool first_render = true;   // flag indicate whether first time render

    while(msg.message != WM_QUIT)
    {
        if(PeekMessage(&msg, NULL, 0,0 , PM_REMOVE))
        {
            TranslateMessage(&msg);
            DispatchMessage(&msg);
        }
        else
        {
            // read data from keyboard buffer
            if(ge_input.Read_Keyboard())
            {
                bool key_left_pressed  = ge_input.Is_Key_Pressed(DIK_LEFT);
                bool key_right_pressed = ge_input.Is_Key_Pressed(DIK_RIGHT);
                bool key_up_pressed    = ge_input.Is_Key_Pressed(DIK_UP);
                bool key_down_pressed  = ge_input.Is_Key_Pressed(DIK_DOWN);

                if(key_left_pressed || key_right_pressed || key_up_pressed || key_down_pressed)
                {
                    camera_reset = true;
                    first_render = false;

                    if(key_left_pressed)    cube.m_cur_x -= 0.2;
                    if(key_right_pressed)   cube.m_cur_x += 0.2;
                    if(key_up_pressed)      cube.m_cur_y -= 0.2;
                    if(key_down_pressed)    cube.m_cur_y += 0.2;
                }
                else
                    camera_reset = false;

                // press "ESC", close window.
                if(ge_input.Is_Key_Pressed(DIK_ESCAPE))
                    PostQuitMessage(0);
            }

            // if camera position need to be reseted or first time render
            if(camera_reset || first_render)
            {
                // Set world position for object with specified world origin coordinate.
                cube.Set_World_Position(cube.m_cur_x, cube.m_cur_y, cube.m_cur_z);
                // Set camera position.
                cube.Set_Camera();
            }

            // Render cube.
            cube.Render();
        }
    }

    UnregisterClass(WINDOW_CLASS_NAME, instance);

    return true;
}

使用上下左右方向键来移动摄影机的位置。

运行效果：

posted on 2007-05-11 17:02 lovedday 阅读(4607) 评论(0) 编辑收藏引用所属分类: ■ DirectX 9 Program

只有注册用户登录后才能发表评论。
【推荐】100%开源！大型工业跨平台软件C++源码提供，建模，组态！

相关文章: 网格模型高级技术高级纹理映射技术 Direct3D中的字体与文本显示 Direct3D中的雾化深度测试与alpha混合使用.x文件模型纹理映射基础深入理解光照计算模型光照与材质顶点坐标变换

网站导航: 博客园 IT新闻 BlogJava 博问 Chat2DB 管理

天行健君子当自强而不息
