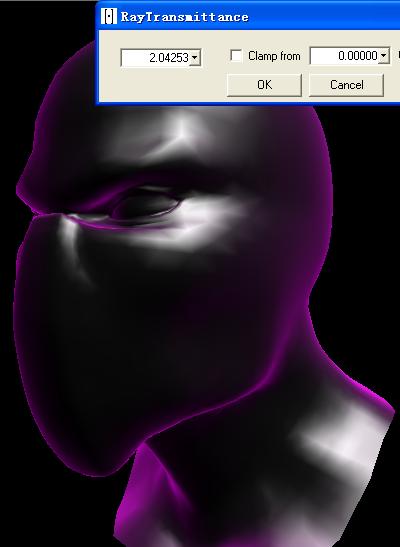

第一个是最容易“发明”的车轮:x射线效果,不过按这个做法实现真正透明的话还要逐个物体渲染到纹理,再叠加:

1
uniform vec3 LightPos;
2
uniform float specularContribution;
3
4
varying vec3 normal;
5
varying float LightIntensity;
6
void main(void)
7

{
8
9
vec3 ecPosition = vec3(gl_ModelViewMatrix * gl_Vertex);
10
normal = normalize(gl_NormalMatrix * gl_Normal);
11
vec3 lightVec = normalize(LightPos - ecPosition);
12
vec3 reflectVec = reflect(-lightVec, normal);
13
vec3 viewVec = normalize(-ecPosition);
14
15
float spec = clamp(dot(reflectVec, viewVec), 0.0, 1.0);
16
spec = pow(spec, 6.0);
17
18
LightIntensity = (1.0-specularContribution) * max(dot(lightVec, normal), 0.0)
19
+ specularContribution * spec;
20
21
LightIntensity=max(LightIntensity,0.0);
22
gl_Position = ftransform();
23
}
1
uniform vec4 myColor;
2
uniform vec4 InnerColor;
3
uniform float RayTransmittance;
4
5
varying vec3 normal;
6
varying float LightIntensity;
7
8
void main(void)
9

{
10
if(normal.z<=0.0)
11
normal.z=1.0;
12
float alpha=1.0-normal.z;
13
alpha=pow(alpha,RayTransmittance);
14
gl_FragColor =mix(myColor,InnerColor,alpha)+LightIntensity;//vec4( myColor.r, myColor.g, myColor.b, alpha );
15
}

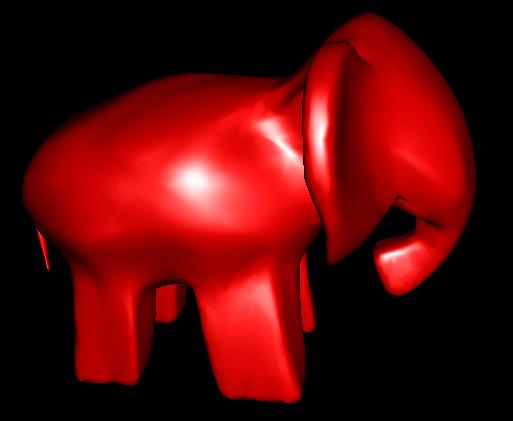

第二个是per pixel lighting,也简单,把vs中的东西搬到ps中就完了:

1
uniform vec3 LightPos;
2
3
varying vec3 Normal_eyeSpace;
4
varying vec3 Pos_eyeSpace;
5
6
void main(void)
7

{
8
gl_Position = ftransform();
9
10
Normal_eyeSpace=gl_NormalMatrix * gl_Normal;
11
12
Pos_eyeSpace=gl_ModelViewMatrix * gl_Vertex;
13
14
15
}
1
uniform vec3 LightPos;
2
3
varying vec3 Normal_eyeSpace;
4
varying vec3 Pos_eyeSpace;
5
6
void main(void)
7

{
8
Normal_eyeSpace=normalize(Normal_eyeSpace);
9
vec3 LightDir_eyeSpace=normalize(Pos_eyeSpace-LightPos);
10
11
float diffuse=max(dot(-LightDir_eyeSpace,Normal_eyeSpace),0.0);
12
float spec = 0.0;
13
14
if (diffuse > 0.0)
15
{
16
vec3 reflectVec = reflect(LightDir_eyeSpace, Normal_eyeSpace);
17
reflectVec=normalize(reflectVec);
18
19
vec3 viewVec=normalize(-Pos_eyeSpace);
20
spec = max(dot(reflectVec, viewVec), 0.0);//反射光
21
spec = pow(spec, 4.0);
22
}
23
float color=min(1.0,diffuse+spec);
24
25
gl_FragColor = vec4( color, spec, spec, 1.0 );
26
}

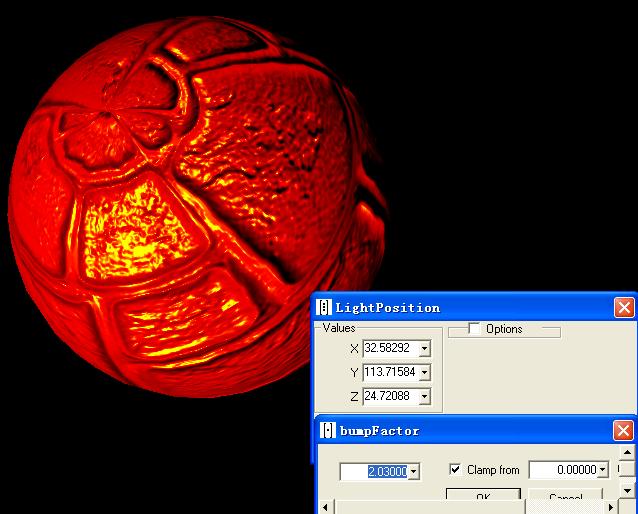

第三个是normal mapping,比较难理解些,在vs中把点的空间位置弄清楚,然后ps中直接拿normal map的贴图当法线用。
但是看过别人实现的normal mapping是可以控制凹凸的强度的,这里好像控制不了,那位高手能说一说思路?

1
uniform vec3 LightPosition;
2
3
varying vec3 EyePos_pointTanSpace;
4
varying vec3 LightPos_pointTanSpace;
5
6
attribute vec3 Tangent;
7
//uniform vec3 Tangent;
8
9
void main()
10

{
11
gl_Position = ftransform();
12
gl_TexCoord[0] = gl_MultiTexCoord0;
13
14
15
vec3 Pos_eyeSpace = vec3(gl_ModelViewMatrix * gl_Vertex);
16
17
// 眼坐标系下的TBN
18
vec3 n = normalize(gl_NormalMatrix * gl_Normal);
19
vec3 t = normalize(gl_NormalMatrix * Tangent);
20
vec3 b = cross(n, t);
21
mat3 TBN = mat3(t, b, n);
22
23
vec3 pointLightPos=LightPosition-Pos_eyeSpace;//光相对于点,在眼空间的位置
24
LightPos_pointTanSpace=TBN*pointLightPos;//光相对于点,在点的tangent坐标系下的位置
25
26
27
vec3 eyePos=Pos_eyeSpace*-1.0; //眼睛相对于点,在眼空间的位置
28
EyePos_pointTanSpace=TBN*eyePos;//眼睛相对于点,在点的tangent坐标系下的点位置
29
30
31
}
1
uniform sampler2D BumpTex;
2
3
uniform float bumpFactor;
4
5
varying vec3 EyePos_pointTanSpace;
6
varying vec3 LightPos_pointTanSpace;
7
8
void main()
9

{
10
float dist=length(LightPos_pointTanSpace);//光距离
11
12
vec3 BumpNorm = vec3(texture2D(BumpTex, gl_TexCoord[0].xy));//获得法向量
13
BumpNorm = (BumpNorm -0.5)* bumpFactor;
14
15
16
vec3 LightDir=normalize(LightPos_pointTanSpace);//光方向
17
vec3 viewVec=normalize(EyePos_pointTanSpace);//眼睛方向
18
19
float diffuse = max(dot(BumpNorm, LightDir), 0.0);
20
21
//diffuse=1.0/(pow(2.0,dist));//距离衰减
22
23
vec3 reflectVec=reflect(-LightDir,BumpNorm);
24
25
float spec = max(dot(reflectVec, viewVec), 0.0);//反射光
26
spec = pow(spec, 16.0);
27
28
float color=spec+diffuse;
29
30
gl_FragColor = vec4(color,spec,0.0, 1.0);
31
}
