为了写一个gui,要协调好控件和事件监听的关系以及应用程序不同窗口的关系。

为了要写一个良好支持可扩展的控件库，需要写一个泛化组件库，要写一个泛化组件库，需要先实现它的逻辑基础，也就是可能利用到的几何对象(arith::geo),

为了能够让对组件和窗体的事件监听变得透明,需要封装需要被利用的api和注册窗口类。

现在正在两头开始,这样能够不断测试自己的代码,当上下两部分越来越充实,就自然的结合了.

以下是 os::frame 子库半成品,目的是封装windows  application.

代码结构如下:

namespace appinfo;  封装应用程序信息.

namespace frame; 应用框架.

frame::api::def;  常量信息集
frame::api::type;  api的基本类型集
frame::api::handle;  封装的句柄集
frame::api::paint;   封装的绘制类,实例化后方便的处理所有跟绘制有关的api.
frame::api::mouse;  封装的鼠标信息集
frame::api::message; message处理集
frame::api::proc;   form回调函数类,实例化后专门为form池集中处理不同的事件
frame::api::wndclass; 注册窗口类以及窗口相关创建
frame::form;  所有对话框和文档都统一用form类实例化.

由于是两头写，组件库和关键的事件监听框架还没有完全写完，等写到一定阶段再把不同form的事件分开独立处理,


/*  frame.h :os::frame */

#ifndef APPFRAME__

#define APPFRAME__

#include <windows.h>
#include <tchar.h>
#include <stdio.h>

#include "axiom.h"
#include "string.h"
#include "geo.h"


namespace appinfo
{
    static const int max_form=500;
    static int iCmdShow,regNum,listIndex;
    static HINSTANCE hInstance;
    static HINSTANCE hPrevInstance;
    static PSTR szCmdLine;
    static MSG  msg;
    /* register windowclass-name */
    static TCHAR regList[max_form][4];
    static void decform()
    {
        --regNum;
    }
    static void incform()
    {
        ++regNum;
    }
    static void setListIndex(int & reg_index,LPCWSTR & wc_name)
    {
        reg_index=listIndex;
        regList[listIndex][0]=1;
        regList[listIndex][1]=reg_index;
        regList[listIndex][2]=0;
        wc_name=regList[listIndex];
        ++listIndex;
        ++regNum;
    }

}
namespace frame
{


    using adt::ustring;




    class api
    {
    public:
        class def
        {
        public:
            static const int nil =0;
            static const int sm_x = 0;
            static const int sm_y = 1;
            static const int wm_create=WM_CREATE;
            static const int wm_paint=WM_PAINT;
            static const int wm_destroy=WM_DESTROY;
            static const int wm_mousemove=WM_MOUSEMOVE;
            static const unsigned int cs_default= CS_HREDRAW | CS_VREDRAW ;
        };
        class type
        {
        public:
            typedef HDC__* hdc;
            typedef HWND hwnd;
            typedef ustring string;
            typedef UINT uint;
            typedef RECT rect;
            typedef LPRECT lprc;
            typedef WPARAM wp;
            typedef LPCWSTR lpcwstr;
            typedef LPARAM lp;
            typedef PAINTSTRUCT ps;
            typedef LPPAINTSTRUCT lpps;
            typedef BYTE byte;
            typedef LONG_PTR result;
            typedef WNDCLASS wndclass;
            typedef HICON hicon;
            typedef HCURSOR hcursor;
            typedef HBRUSH__* hbrush;
            typedef HINSTANCE hinstance;
            typedef PSTR  pstr;
            typedef MSG msg;
            typedef TCHAR tchar;
            typedef BOOL state;
            typedef POINT point;
        };
        class handle
        {public:
        static type::hicon icon(int i=0)
        {
            return  LoadIcon (NULL, IDI_APPLICATION);
        }
        static type::hcursor cursor(int i=0)
        {
            return  LoadCursor (NULL, IDC_ARROW);
        }
        static type::hbrush brush(int i=WHITE_BRUSH)
        {
            return (type::hbrush) GetStockObject (i);
        }
        };
        class paint
        {
        public:
            type::hdc hdc;
            type::rect rect;
            type::hwnd hwnd;
            type::ps ps;
            bool ready;
            paint():ready(false){}
            ~paint()
            {
                if(ready!=false)
                    end();
                ready=false;
            }
            type::hdc begin(type::hwnd & hwnd)
            {
                ready=true;
                hdc = BeginPaint(hwnd,&ps);
                GetClientRect (hwnd, &rect);
                return (hdc );
            }
            int end()
            {
                ready=false;
                return EndPaint(hwnd,&ps);
            }
            int text(type::string & tx)
            {
                if(ready)
                    return DrawTextW (hdc, tx(), -1, &rect,
                    DT_SINGLELINE | DT_CENTER | DT_VCENTER) ;
                else return 0;
            }
            type::state rectangle(int x,int y,int w,int h)
            {
                int sx=sm::screenx();
                int sy=sm::screeny();
                return Rectangle (hdc,x,y,x+w, y+h) ;
            }
            type::state polygon(type::point *apt,int i)
            {
                return Polygon (hdc,apt,i) ;
            }


        };
        class mouse
        {
        public:
            static int x(type::lp & lp)
            {
                return LOWORD(lp) ;
            }
            static int y(type::lp & lp)
            {
                return HIWORD(lp) ;

            }
        };
        class sm
        {
        public:
            static int screenx()
            {
                return GetSystemMetrics(def::sm_x);
            }
            static int screeny()
            {
                return GetSystemMetrics(def::sm_y);
            }
        };
        class message
        {
        public:
        };
        class proc
        {
        public:
            type::hwnd hwnd;
            type::uint msg;
            type::wp wp;
            type::lp lp;

            proc(){}
            proc(type::hwnd &hwnd_t,type::uint &msg_t,type::wp &wp_t,type::lp &lp_t)
            {
                update(hwnd_t,msg_t,wp_t,lp_t);
            }
            void update(type::hwnd &hwnd_t,type::uint &msg_t,type::wp &wp_t,type::lp &lp_t)
            {
                hwnd=hwnd_t;
                msg=msg_t;
                wp=wp_t;
                lp=lp_t;
            }
            type::result defproc()
            {
                return DefWindowProcW (hwnd, msg, wp, lp);
            }

            void postquit(int exitCode_t=0)
            {
                if(appinfo::regNum==1)
                {
                    //WSHOW__(TEXT("啊！是你."))
                        --appinfo::regNum;
                    PostQuitMessage(exitCode_t);
                }else
                {
                    --appinfo::regNum;
                }
            }


        };

        class wndclass
        {
        public:
            type::hwnd   hwnd ;
            type::hwnd   parenthwnd;
            type::string  title;
            type::wndclass wc;/* wndclass info */
            int regIndex;/* self-wndclass index in regList */



            static type::result __stdcall wndproc(HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
            {

                static proc proc;
                static paint pt;
                static type::string  m(TEXT("啊！是你."));

                using geo::polygon;

                static polygon plg;

                static int angle=0;
                if(angle==0)
                {
                    plg.push(100,100);
                    plg.push(200,100);
                    plg.push(300,200);
                    plg.push(300,300);
                    plg.push(200,250);
                    plg.push(100,400);
                    angle=1;
                }

                static wchar_t buf[20];

                proc.update(hwnd,message,wParam,lParam);

                switch (message)
                {
                case api::def::wm_create:
                    return 0 ;
                case api::def::wm_mousemove:
                    pt.begin(hwnd);
                     m.set(0);
                     wsprintf(buf,L"(x:%d ,y:%d)\0",mouse::x(lParam),mouse::y(lParam));
                     m.set(buf);

                     pt.end();
                     InvalidateRect(hwnd,NULL,TRUE);

                     return 0;
                case api::def::wm_paint:
                    pt.begin(hwnd);


                    {

                    POINT apt[6];
                    plg.rotate(angle);
                    for(int i=0;i!=6;i++)
                    {
                        apt[i].x=plg(i,0);
                        apt[i].y=plg(i,1);
                    }
                    pt.polygon(apt,6);
                    }
                    pt.text(m);


                    pt.end();


                    return 0;

                case api::def::wm_destroy:
                    proc.postquit();
                    return 0 ;

                }
                return proc.defproc();
            }
            void init()
            {
                wc.style         = def::cs_default;
                wc.lpfnWndProc   = wndproc ;
                wc.cbClsExtra    = def::nil ;
                wc.cbWndExtra    = def::nil ;
                wc.hInstance     = appinfo::hInstance ;
                wc.hIcon         = handle::icon() ;
                wc.hCursor       = handle::cursor();
                wc.hbrBackground = handle::brush();
                wc.lpszMenuName  = def::nil;

                appinfo::setListIndex(regIndex,wc.lpszClassName);

                if (!RegisterClassW (&wc))
                    return ;
            }
            wndclass()
            {

                init();
            }
            ~wndclass()
            {
                appinfo::decform();
            }
            void setStyle(UINT style)
            {
                wc.style = style;
            }
            void setIcon(HICON hIcon)
            {
                wc.hIcon = hIcon;
            }
            void setCursor(HCURSOR hCursor)
            {
                wc.hCursor = hCursor;
            }
            void setBackground(HBRUSH hbr)
            {
                wc.hbrBackground = hbr;
            }
            int renew()
            {
                hwnd = CreateWindowW(appinfo::regList[regIndex],      // window class name
                    title(),   // window caption
                    WS_OVERLAPPEDWINDOW,  // window style
                    CW_USEDEFAULT,// initial x position
                    CW_USEDEFAULT,// initial y position
                    CW_USEDEFAULT,// initial x size
                    CW_USEDEFAULT,// initial y size
                    NULL,                 // parent window handle
                    NULL,            // window menu handle
                    appinfo::hInstance,   // program instance handle
                    NULL) ;      // creation parameters
                return 1;

            }
            void setTitle(wchar_t  _title[])
            {
                title.set(_title);
            }
        };
    };



    class form
    {
        api::wndclass tf;
    public:
        form()
        {


            tf.setTitle(TEXT("ving"));
            tf.init();
            tf.renew();
        }
        ~form()
        {
        }
        form(wchar_t *title)
        {
            tf.setTitle(title);
            tf.init();
            tf.renew();
        }

        int show()
        {
            tf.renew();
            int scx=api::sm::screenx();
            int scy=api::sm::screeny();
            SetWindowPos(tf.hwnd,NULL,scx/3 ,scx/3 ,scx/3,scy/3,SWP_HIDEWINDOW);
            ShowWindow (tf.hwnd, appinfo::iCmdShow) ;
            UpdateWindow (tf.hwnd) ;
            return 1;
        }
    };
}
int cpp();
int WINAPI WinMain (HINSTANCE hInstance, HINSTANCE hPrevInstance,PSTR szCmdLine, int iCmdShow)
{

    appinfo::regNum=0;
    appinfo::listIndex=0;
    appinfo::hInstance=hInstance;
    appinfo::hPrevInstance=hPrevInstance;
    appinfo::szCmdLine=szCmdLine;
    appinfo::iCmdShow=iCmdShow;

    cpp();

    while (GetMessageW(&appinfo::msg, NULL, 0, 0))
    {
        TranslateMessage (&appinfo::msg) ;
        DispatchMessage (&appinfo::msg) ;
    }
    return (int)appinfo::msg.wParam ;
}




#endif




这里是它的入口点界面,在该框架下,入口点是cpp(),当有需要,可以加入隐含变量处理入口点获取的路径和执行参数:


/* init.h  */

#include "appframe.h"


int cpp()
{
    using frame::form;

    form f;
    f.show();

    return 0;

}



当写到一定时机成熟时,会把appframe里的proc form管理池的接口搬到init.h的入口点函数.

由于之前基于自己写的arith::axiom库实现过关于不规则内陷多边形的点区域检测demo,所以接下来关于组件库和监听框架的实现应该会快了.

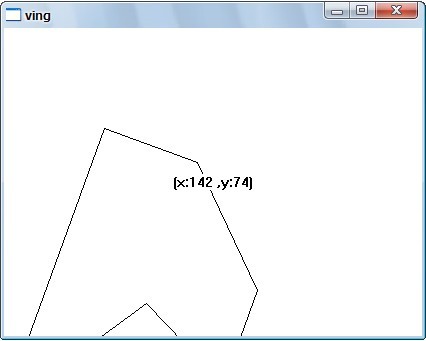

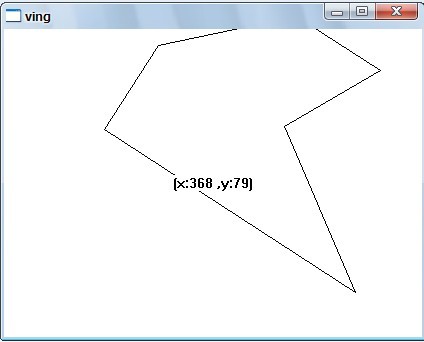

该代码的demo是一个多边形围绕一个点旋转,中间不停更新鼠标在Client区的相对坐标.
